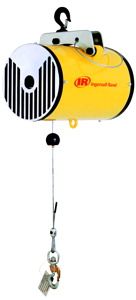

Ingersoll Rand (B) Series (Zimmerman) Balancers come standard with no controls, and are designed for integration with an end effector or handling device that includes a control package. The robust design of these pneumatic balancers gives you continuous duty cycle with minimal maintenance. “B” Series air balancers are built to enhance your productivity, with stronger and more efficient lifting.
RELIABILITY: Features include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation.
SAFETY:;
Standard emergency cable retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake automatically stops the rapid upward cable travel.
If the air supply is ever interrupted, the unit will maintain the load in the suspended position.
The load being lifted can never exceed the unit’s maximum rated capacity at a given air pressure, providing intrinsic overload protection.
The optional Z-stop eliminates the down-drift of suspended loads within 6 inches (152 mm) if air supply is shut down.
PRODUCTIVITY: Gain flexibility, with ultra-low air consumption, clean oil free operation, and cable travels of up to 120 inches depending on model.
Suspension kits are available for virtually all enclosed track manufacturers, as well as I-beam, Patented/Hardened track, and Hook mounted configurations
