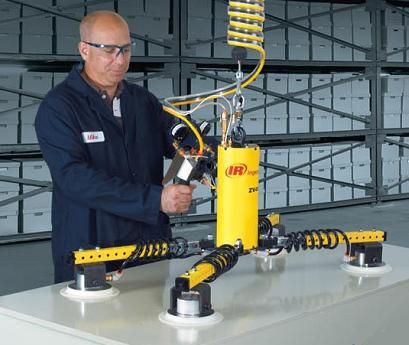

The ZV4S 4-Cup Vacuum Lift Assists allow an operator to lift, orient, and place flat, non-porous parts weighing up to 300 lb. (136 kg) at 25 inHg with minimal effort. These vacuum lift systems can be used to straight transfer parts, safely and effectively. The tool is perfect as a glass lifter, and also works for sheet metal and plastic.
SAFETY: Once the vacuum cups are fully engaged, a safety interlock (indicated by an air gauge and a green signal) prevents the accidental release of the load.

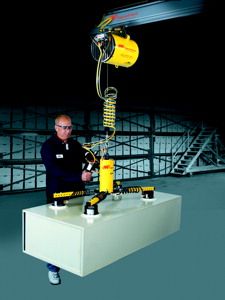

PRODUCTIVITY: This vacuum lifter helps improve your productivity through more effective box or flat part pickup, orientation, transfer, and positioning.
DURABILITY: The handling devices are designed to the ASME B30.20 specification for Below-the-Hook Lifting Devices.
ERGONOMIC: Model ZV4S uses the same ergonomic grip surface, but has non-pivoting controls that permit single-handed up/down movement and vacuum on/off.
VERSATILITY: Model ZV4S is adjustable from a 12 x 12 in. (305 x 305 mm) cup pattern to a 39 x 39 in. (990 x 990 mm) cup pattern. Each cup arm can rotate through 60 degrees, offering MAX application flexibility.
Material quality is protected with positive secure gripping at pickup/set down for reduced part damage
Suitable for the following applications: sheet metal, plastics, Formica
NOT suitable for corrugated cardboard, wood, oil surfaces or porous materials
Please contact the factory for porous applications
