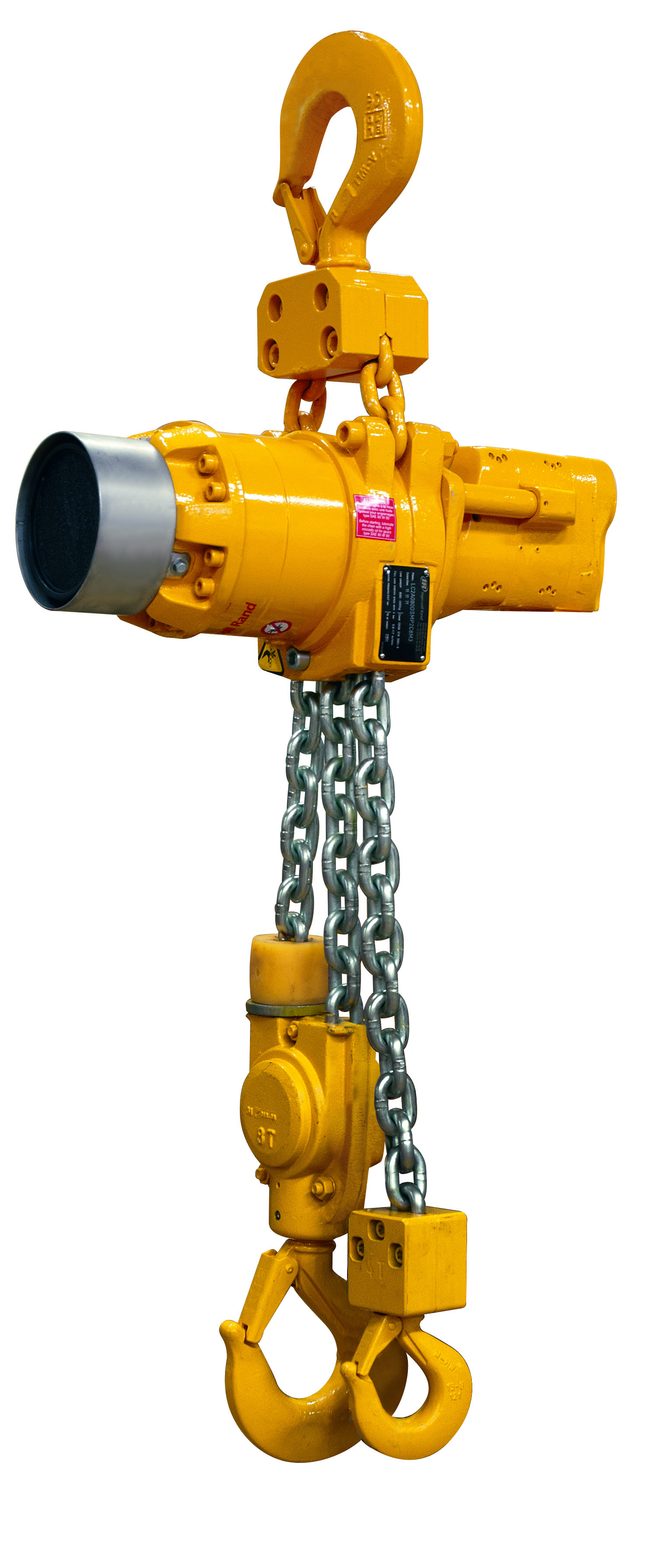

Liftchain® Miner Series Air Chain Hoists

The Miner Series features the same compact, robust design as our standard Liftchain air hoists, but adds several upgrades for the heavy duty conditions found in the underground mining and tunneling industries. This includes operation to 60 psia (4 bar), top hook mounted on chain links, an optional extra bottom hook for pulling, top and bottom limit switches and a cast iron pendant control.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

Durability

  • Rugged, compact and lightweight all steel construction adaptable for any environment
  • Cast iron pendant control
  • Grade 80 calibrated corrosion-resistant load chain
  • Automatic multi disc brake fully enclosed for better corrosion resistance

Safety

  • Suitable for explosive environments per ATEX Zone 2 standard (ATEX Zone 1 package (optional)
  • Overload protection device ensures safe operation
  • Top and bottom limit switches through resistant buffer stops that comes against the hoist central part

Performance

  • Suitable to operate at 60 psia (4 bar)
  • Top hook mounted on chain links for increased flexibility; extra optional bottom hook for pulling
  • Virtually maintenance-free gear-type air motor with minimal moving parts
  • Variable speed for precision spotting control

Model Specifications

Model
LC2A015SM
LC2A015SSM
-
LC2A030DM
LC2A030DSM
-
LC2A040SM
LC2A040SSM
-
LC2A060SM
LC2A060SSM
-
LC2A080DM
LC2A080DSM
-
LC2A120DM
LC2A120DSM
-
Number of Load Hooks
1
2
2
1
2
2
1
2
2
1
2
2
1
2
2
1
2
2
Rated Capacity on Each Hook (t)
1.5 (simple hook)
1.5 (simple hook)
1.5 (simple hook)
3 (double hook)
1.5 (simple hook)
3 (double hook)
4 (simple hook)
4 (simple hook)
4 (simple hook)
6 (simple hook)
6 (simple hook)
6 (simple hook)
8 (double hook)
4 (simple hook)
8 (double hook)
12 (double hook)
6 (simple hook)
12 (double hook)
Min. Headroom (mm)
608
608
608
675
608
675
757
757
757
952
952
952
940
757
940
1148
952
1148
Performances at 4 Bar (58 psi) Pulling Speed at Rated Load (m/min)
3.2
3.2
3.2
1.5
3.2
1.5
1.7
1.7
1.7
1.4
1.4
1.4
0.9
1.7
0.9
0.7
1.4
0.7
Performances at 4 Bar (58 psi) Speed No Load (m/min)
9
9
9
4.5
9
4.5
4
4
4
2
2
2
2
4
2
1
2
1
Performances at 4 Bar (58 psi) Air Cons. At Rated Load (m3/min)
2.2
2.2
2.2
2.2
2.2
2.2
3
3
3
2.5
2.5
2.5
3
3
3
2.5
2.5
2.5
Performances at 6.3 Bar (90 psi) Pulling Speed at Rated Load (m/min)
6.2
6.2
6.2
3
6.2
3
3.9
3.9
3.9
2.2
2.2
2.2
1.8
3.9
1.8
1.1
2.2
1.1
Performances at 6.3 Bar (90 psi) Speed No Load (m/min)
11
11
11
5.5
11
5.5
7
7
7
3.6
3.6
3.6
3.5
7
3.5
1.8
3.6
1.8
Performances at 6.3 Bar (90 psi) Air Cons. At Rated Load (m3/min)
4
4
4
4
4
4
4.5
4.5
4.5
5.2
5.2
5.2
4.5
4.5
4.5
5.2
5.2
5.2
Sound Level (1) (dbA)
79
79
79
79
79
79
76
76
76
79
79
79
76
76
76
79
79
79
Hoist Weight (2) (kg)
41
42
42
48
50
50
90
92
92
125
127
127
118
120
120
171
179
179
Chain Size (mm)
8x24
8x24
8x24
8x24
8x24
8x24
13x36
13x36
13x36
16x45
16x45
16x45
13x36
13x36
13x36
16x45
16x45
16x45
Chain Weight/1 m Extra Lift (kg)
1.4
1.4
1.4
2.8
2.8
2.8
3.8
3.8
3.8
5.7
5.7
5.7
7.6
7.6
7.6
11.4
11.4
11.4
