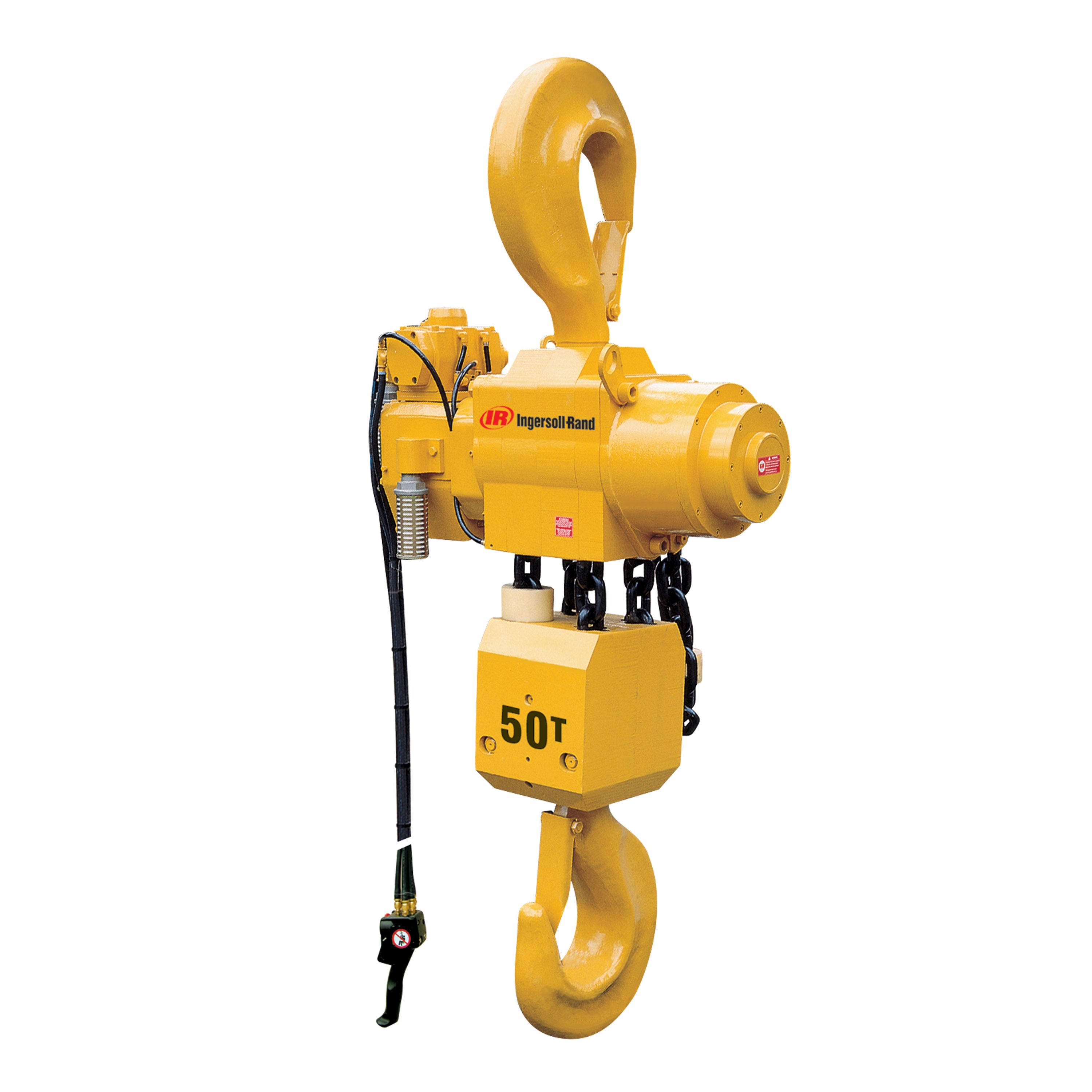

hoists Liftchain 50 ton Hydraulic Hoist Hook hero lf

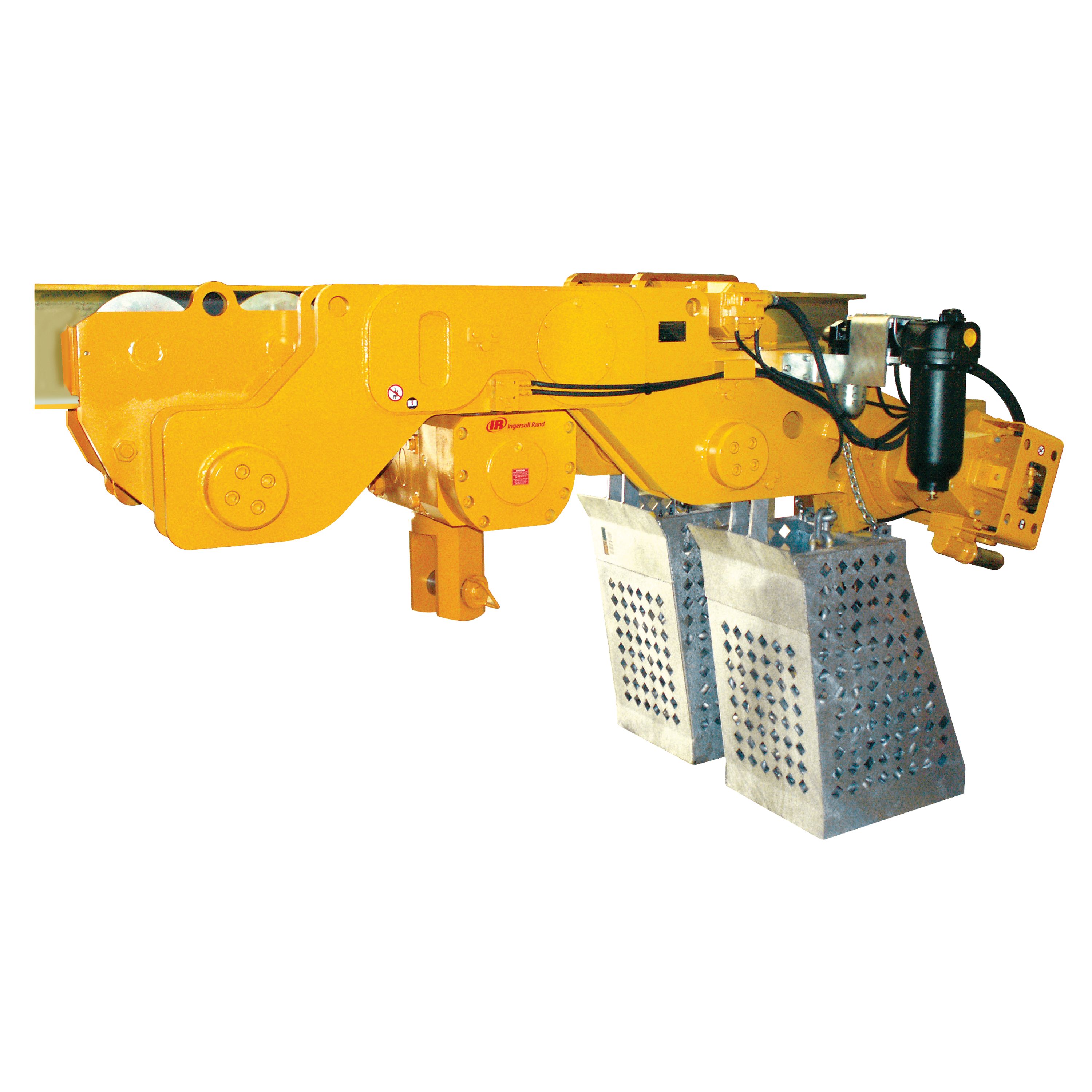

hoists Liftchain 6100 ton Hydraulic Hoist Low Headroom Trolley f
hoists Liftchain 6100 ton Hydraulic Hoist Ultralow Headroom Trolley f
hoists Liftchain 6 ton Hydraulic Hoist Hook hero
25 ton Hydraulic Hoist Trolley hero
hoists Liftchain 50 ton Hydraulic Hoist Hook hero lf
hoists Liftchain 6100 ton Hydraulic Hoist Low Headroom Trolley f
hoists Liftchain 6100 ton Hydraulic Hoist Ultralow Headroom Trolley f
hoists Liftchain 6 ton Hydraulic Hoist Hook hero
Back to the product list

Liftchain® Hydraulic Hoist

6 to 100 metric ton Lifting Capacity Providing the execptionally smooth and precise control that hydraulics offer, the LCH series of hoists are available in hook and standard, or low headroom, trolley configurations. Hydraulic motors and controls are particularly well suited for integration with complex programmable logic control (PLC) systems and other automated applications
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features



Durability

  • Rugged, compact and lightweight all steel construction adaptable for any environment
  • Grade 80 calibrated corrosion-resistant load chain with a 5:1 design factor
  • Automatic multi disc brake fully enclosed for better corrosion resistance
  • Drain holes in block prevent deterioration due to trapped water

Safety

  • Designed for explosive environments ATEX Zone 2 standard (ATEX Zone 1 package optional)
  • Overload protection device ensures safe operation
  • Upper and lower limit switches integrated in hoist body provide better protection

Performance

  • Hydraulic motor offers high torque and high efficiency at low motor speed
  • Ball bearing mounted bottom hook for easier, smoother turning under load
  • External lubrication point for easier maintenance

Model Specifications

Model
Lifting Capacity Metric Tons
Reeves of Chain
Headroom mm (in)
Net Weight with 3m (10ft) of Chain kg (lb)
Weight per Additional Meter of Lift kg (lb)
LCH060S
6
1
735 (28.9)
93 (205)
5.8 (12.7)
LCH120D
12
2
991 (39.0)
175 (385)
11.5 (25.3)
LCH125S
12.5
1
865 (34.1)
500 (1,100)
10.7 (23.5)
LCH180T
18
3
1,083 (42.6)
200 (440)
17.2 (37.8)
LCH250Q
25
4
1,180 (46.5)
430 (946)
23.0 (50.6)
LC2H250D
25
2
1,235 (48.6)
670 (1,474)
21.4 (47.1)
LC2H375T
37.5
3
1,484 (58.4)
875 (1,925)
32.1 (70.6)
LC2H500Q
50
4
1,590 (62.6)
950 (2,090)
42.9 (94.6)
LCH750T
75
3
2,338 (92.0)
2,800 (6,160)
73.5 (161.7)
LCH1000Q
100
4
2,455 (96.7)
3,245 (7,139)
98.0 (215.6)
