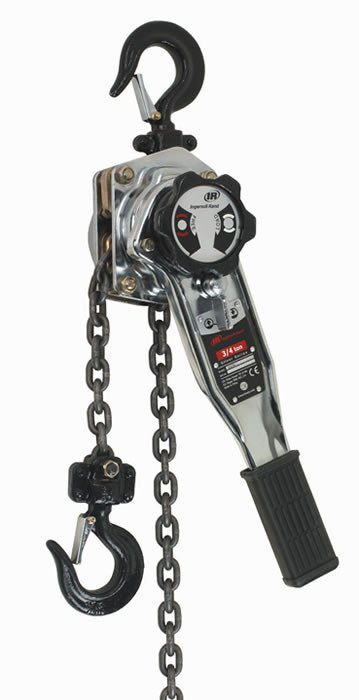

SLB Silver Series Lever Hoists

3/4 - 6 metric ton Line Pull Capacity. Give us a place to stand and we'll help you move the earth. Archimedes principle of leverage is improved yet again in the Silver Series Lever Chain Hoist. Meets ANSI/ASME B30.16 and all pertinent world standards, including the European Machinery Directive. The patent pending"Arrow-Notch"; free chain system is simple and reliable. Just one hand turns the indicator and operators will enjoy the easiest free chaining we have ever tested. Try to operate an SLB in free chain mode and the brake instantly engages, holding the load, minimizing the risk of an accident.The Silver Series has a zinc-nickel-chrome plated finish, which is more durable and corrosion resistant than paint. Plus the SLB has the quality features you expect from Ingersoll Rand.

Request a Quote Request Service, Parts or Support

Features

Meets Specifications and HST - 3M standards
Value priced lever hoist with industrial rated performance
Low handle force required
One hand operation with the best free chaining available
Shipyard hooks - available on 1.5 and 3 ton models only
If a load is applied in the free chain mode, the brake will automatically engage, minimizing operator setup error
360 degree handle rotation
Comfortable, rubber handle grip
Reliable disc braking system
Premium grade 100 alloy load chain
Hardened swivel latch hooks
Light weight design for better portability

Model Specifications

ModelName

Chain falls

Shipping Weight w/ 10 lift, lbs (kg)

Pull to Lift Rated Load, lbs (kg)

Headroom (Hook Mount), in (mm)

Capacity, lbs (kg)

SLB1200

69 (31.4)

57 (25.9)

25.2 (640.1)

13200 (6000)

SLB150

16 (7.3)

41 (18.6)

13.0 (330.2)

1650 (750)

SLB200

16 (7.3)

60 (27.3)

14.4 (365.8)

2200 (1000)

SLB300

26 (11.8)

53 (24.1)

15.7 (398.8)

3300 (1500)

SLB600

46 (20.9)

53 (24.1)

20.5 (520.7)

6600 (3000)

Documents

Parts, Operation, and Maintenance Manual, Lever Chain Hoist

MHD-1106-001 SLB Lever Hoist Flyer

IRITS-1211-116 Manual Hoist Catalog 01232014

SLB Lever Chain Hoist, Polish
