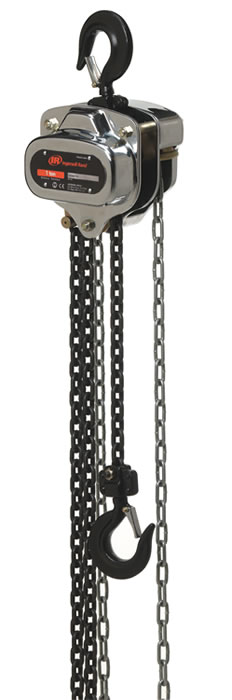

SMB Silver Series Manual Hoists

1/2 - 5 metric ton Lifting Capacity; A new design for the modern workplace with safety and performance in mind. Meets or exceeds world specifications including ASME B30.16. A value-packed product with premium features at a great price.

Request a Quote Request Service, Parts or Support

Features

Meets Specifications and HST - 2M standards
Overload Protection to deter and reduce downtime and repair costs resulting from abuse
All steel, low headroom, light weight construction
Self-adjusting disc type double pawl mechanical load brake
Hardened roller bearings for maximum efficiency and durability
4 layer finish of nickel, copper, nickel, and chrome - rugged enough to last
Ideal for the Rental and Construction markets
Hand chain drop is 2 feet less than lift (unless specified)

Model Specifications

ModelName

Chain falls

Chain overhauled to lift load 1 ft, ft (m)

Shipping Weight w/ 10 lift, lbs (kg)

Pull to Lift Rated Load, lbs (kg)

Headroom (Hook Mount), in (mm)

Capacity, lbs (kg)

SMB005

25 (7.6)

23.5 (10.7)

55 (25.0)

12.8 (325.1)

1100 (500)

SMB010

39 (11.9)

26.8 (12.2)

64 (29.1)

13.8 (350.5)

2200 (1000)

SMB015

58 (17.7)

38.5 (17.5)

69 (31.4)

17.1 (434.3)

3300 (1500)

SMB020

75 (22.9)

42.4 (19.3)

77 (35.0)

18.2 (462.3)

4400 (2000)

SMB030

116 (35.4)

70.4 (32.0)

100 (45.5)

20.9 (530.9)

6600 (3000)

SMB050

187 (57.0)

90.2 (41.0)

83 (37.7)

28.0 (711.2)

11000 (5000)
