Case Study: Mine Shaft Elevator

CUSTOMER: MINE OPERATOR

SCENARIO: CUSTOMER TOOK OVER AN OLD MINING OPERATION AND NEEDED TO MOVE PEOPLE AND EQUIPMENT ON THE SAME MINE SHAFT ELEVATOR IN ORDER TO INCREASE PRODUCTIVITY.

The shaft was currently 400ft deep, but they needed it as deep as 650ft
New mine shaft elevator winch needed to lift/lower people and equipment down the 650ft mineshaft
They did not have enough compressed air to run a pneumatic winch

SOLUTION: CUSTOM MAN RIDER™

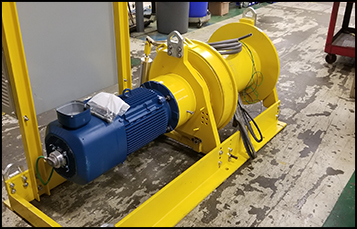

Our engineering team designed a custom man-rider™ FE5i-MR winch with VFD (variable frequency drive)
Encoder on the motor to read out speed

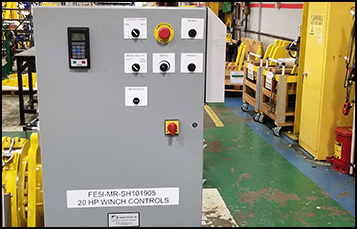

Push-button controls on the panel
With freezing temperatures in the winter, the engineers decided to pursue electric over pneumatic controls
