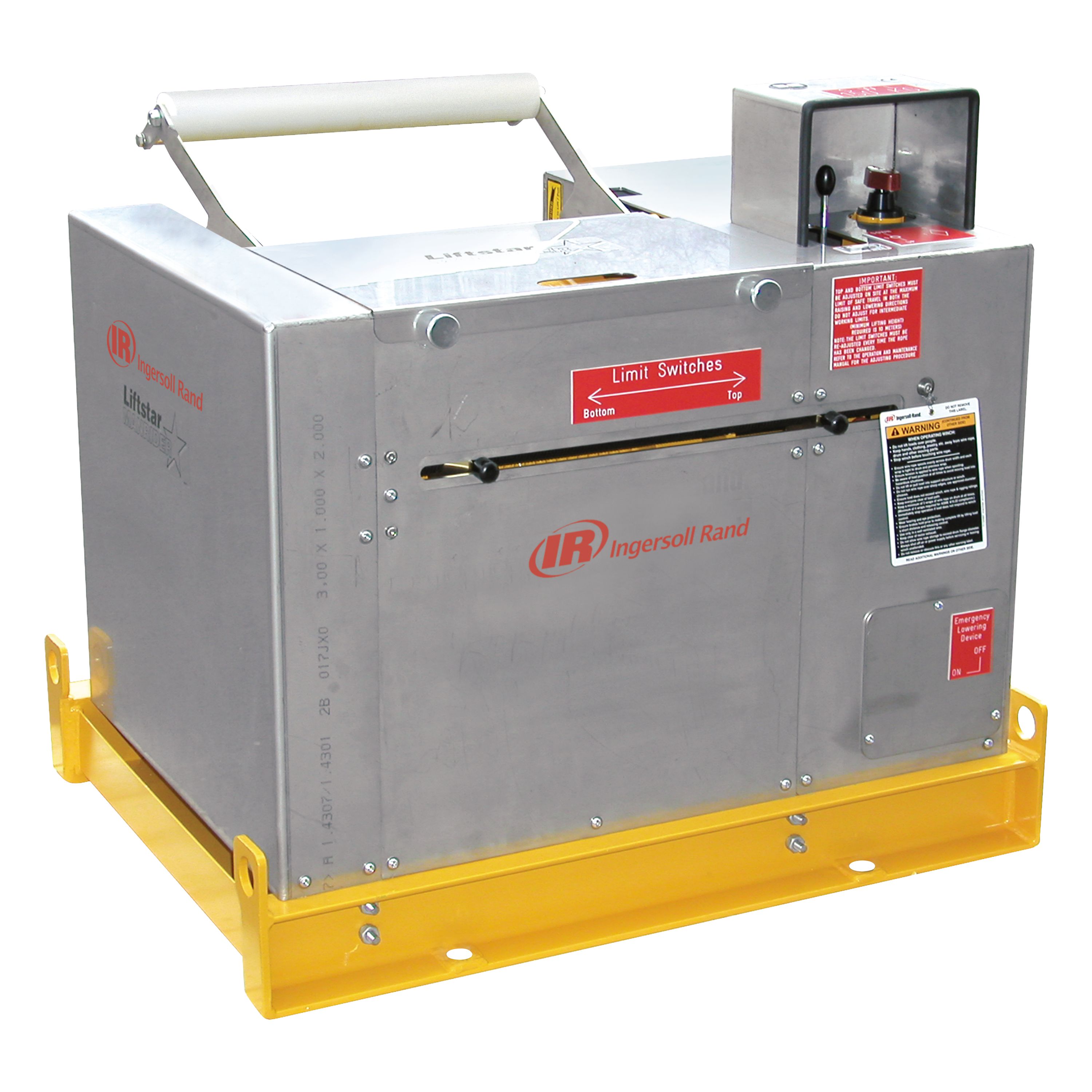

LS2150kg Hydraulic Offshore Manrider b

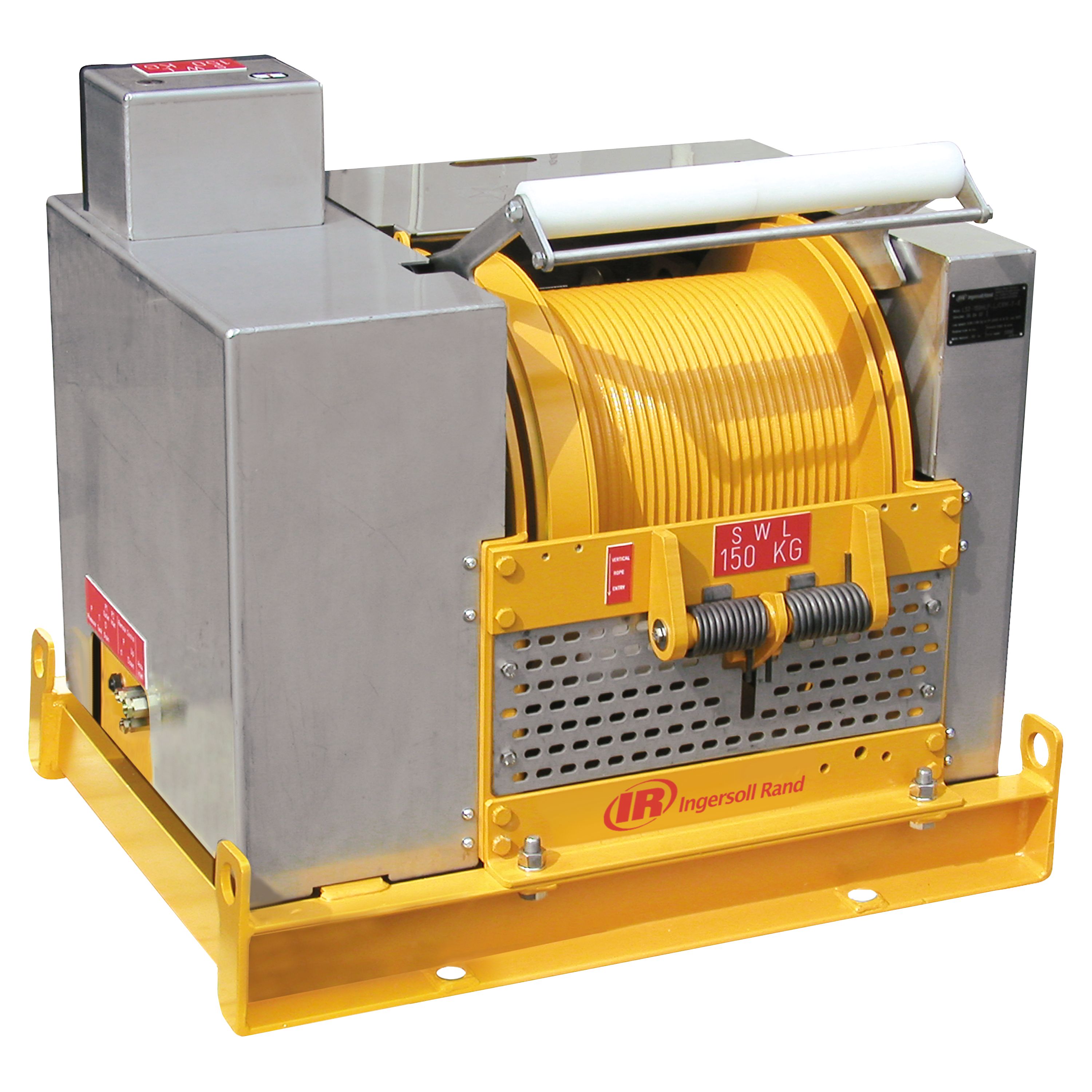

LS2 150 Offshore Man Rider Hydraulic Winch Front
LS2150kg Hydraulic Offshore Manrider b
LS2 150 Offshore Man Rider Hydraulic Winch Front
Back to the product list

Man Rider® Hydraulic Winch

The Ingersoll Rand hydraulic Man Rider® winch is specifically designed to minimize the risks of lifting people in offshore environments. Its built-in safety features such as emergency stop, emergency lifting and adjustable limit switches meet or exceed strict safe-lifting standards. And to ensure it continues performing, it utilizes a tough, full-stainless steel enclosure and true, marine-grade paint to stand up to the harsh offshore environment. Designed to meet the latest regulations including CE, ATEX and ABS/DNV type approval, Ingersoll Rand’s Hydraulic Man Rider® winch will help you lift your personnel safely.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features



    Durability

    • Stainless Steel Enclosure protects moving parts from the elements
    • Marine grade paint provides superior corrosion resistance
    • 10:1 Design Factor for extra-long life



    Safety

    • Automatic Multi-Disc Brake and Automatic Drum Brake provide the safety of two independent braking systems
    • Slack line prevention system automatically stops the winch from paying out in case of slack wire
    • Built-in limit switches prevents raising or lowering past set limits



    Performance

    • Helical Grooved Drum assists with wire rope spooling
    • Press Roller assists with wire rope spooling
    • Designed to meet the latest regulations including CE, ATEX and DNV type approval

    Model Specifications

    Model
    LS2-150HLP
    Line Pull Capacity First Layer kg (lb)
    150 (330)
    Line Pull Capacity Mid Drum kg (lb) 150 (330)
    150 (330)
    Line Pull Capacity Top Layer kg (lb)
    150 (330)
    Line Speed First Layer m/min (fpm)
    28 (92)
    Line Speed Mid Drum m/min (fpm)
    29 (96)
    Line Speed Top Layer m/min (fpm)
    30 (98)
    Lifting Speed at Top Layer m/mm (f/fpm)
    30 (98)
    Max Flow with Rated Load I/min (gal/min)
    10 (2.64)
    Operating Pressure bar (psi)
    105 (1,523)
    Net Weight kg (lb)
    380 (838)
    Drum Capacity Min. Rope Breaking Force kN (lbs)
    14.7 (3,300)
    Drum Capacity Recommended Rope Diameter mm (in)
    10 (3/8)
    Drum Capacity per Layer 1, in (ft)
    24 (78)
    Drum Capacity per Layer 2, in (ft)
    54 (177)
    Drum Capacity per Layer 3, in (ft)
    85 (278)
    Drum Capacity per Layer 4, in (ft)
    118 (387)
    Drum Capacity per Layer 5, in (ft)
    154 (505)
    Drum Capacity Max. Rope Storage Capacity in (ft)
    154 (505)

    General Performance based on a 10:1 design factor
