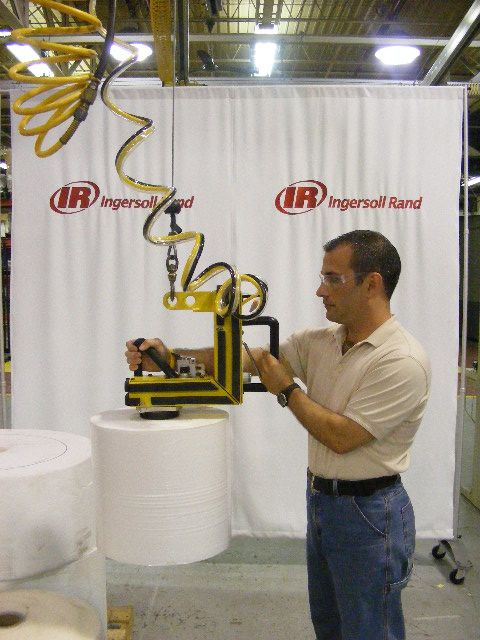

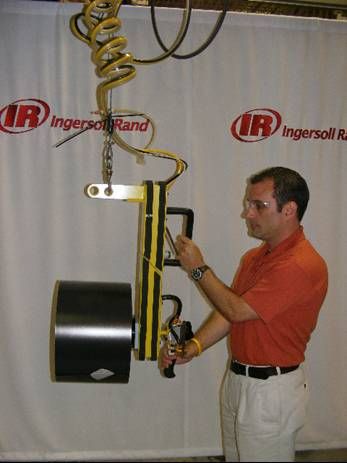

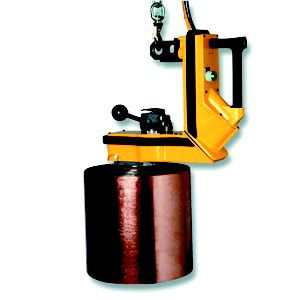

The Rotary Action Handlers perform virtually effortless horizontal-to-vertical product orientation (90 degrees) of loads up to 300 lb. (136 kg). The versatility of this roll handling equipment is enhanced by a variety of end effector part grippers, including a non-destructive rubber gripper nose that eliminates damage to core material.
SAFETY: Once the probe is fully engaged, a safety interlock (indicated by an air gauge and a green signal) prevents the accidental release of the load.
ERGONOMIC: The roll lifting equipment provides effortless 90-degree manual rotation of rolls up to 300 lb. (136 kg).

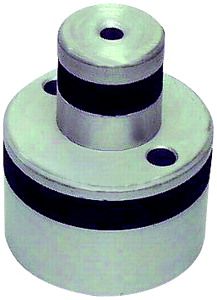

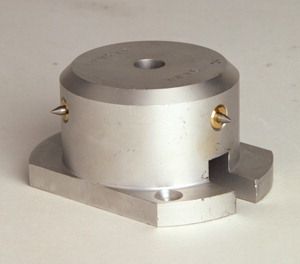

VERSATILITY: The roll lift’s non-destructive rubber band style and pin style noses engage the ID of the core.

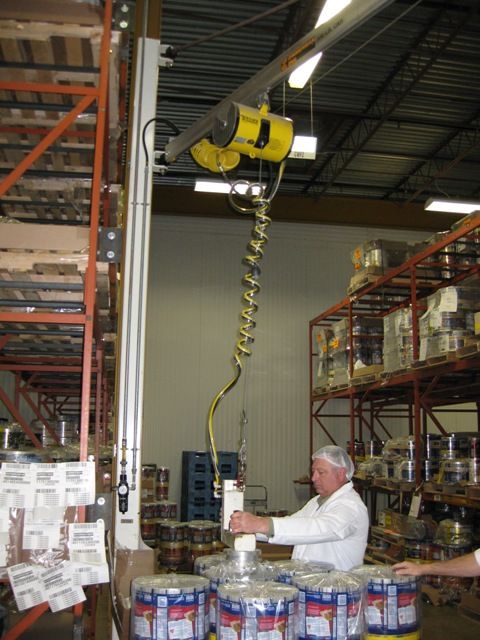

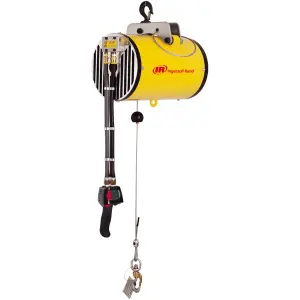

Integrated up/down controls work seamlessly with Ingersoll Rand Pneumatic Balancers
Lightweight aluminum body for rolls up to 100 lb. (45.4 kg), 12 in. (305 mm) long, and 30 in. (762 mm) diameter
Rugged steel body for rolls up to 300 lb. (136.1 kg), 24 in. (310 mm) long, and 42 in. (1067 mm) diameter
Additional options available upon request include stepped noses for multiple cores, “V” groove for pin cart applications, special paint, spindle end locator, and adjustable bail.
