KM Kinetic Series Manual Hoists

1/4 - 20 metric ton Lifting Capacity. Ingersoll Rand Kinetic Series premium manual chain hoists are engineered for the harshest of environments and deliver exceptional durability to meet your toughest demands. With grade 100 Electro-galvanized chain, cast hook latches, all steel construction and extensive use of bearings these hoists are designed to LAST with minimal down time.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

  • All steel construction for exceptional durability and light weight

  • Reinforced double pawl brake with large diameter pawl springs for a highly dependable brake system

  • Single chain fall through 3 metric tons

  • Full bearing construction on load sprockets and pinion shaft for reduced pull effort and longer life

  • Premium grade 100, Electro-Galvanized chain designed for exceptional corrosion resistance for increased durability.

  • Heavy duty cast hook latches designed for less latch replacements

Model Specifications

ModelName
Chain falls
Capacity (meteric tons)
Shipping Weight w/ 10 lift, lbs (kg)
Pull to Lift Rated Load, lbs (kg)
Chain wt. - 1 ft. of lift lbs.

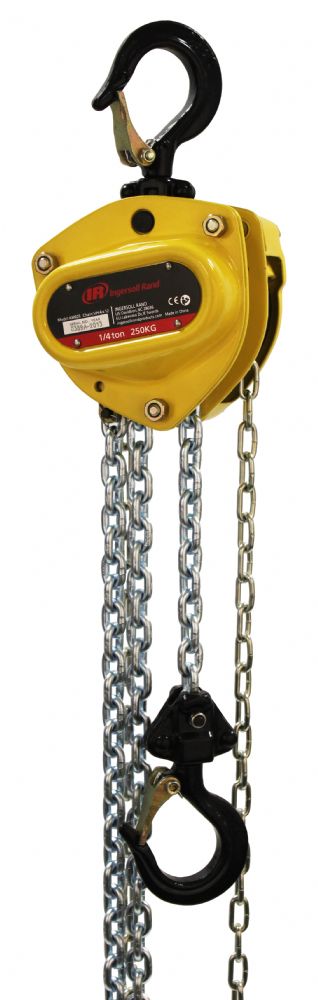

KM025
1
0.25
9.5 (4.3)
41.8 (19)
0.25 (0.11 kg/ft)
KM050
1
0.5
24.8 (11.25)
51.3 (23.2)
1.01 (0.46 kg/ft)
KM100
1
1
28.4 (12.9)
63.8 (29)
1.21 (0.55 kg/ft)

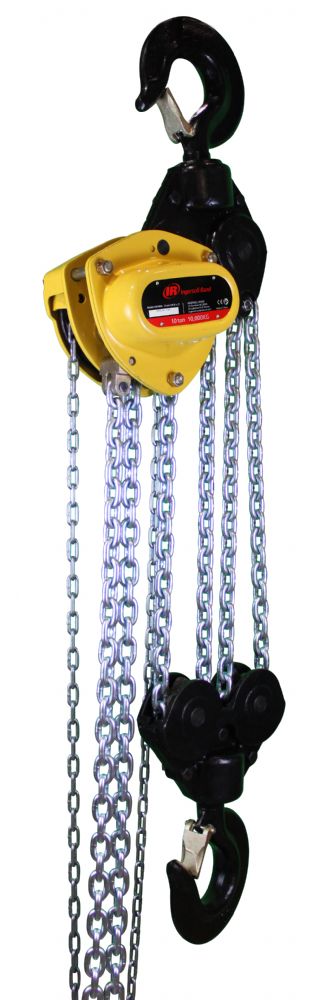

KM1000
4
10
231.2 (104.9)
79.4 (36)
5.31 (2.41 kg/ft)
KM150
1
1.5
36 (16.35)
77.1 (35)
1.41 (0.64 kg/ft)
KM200
1
2
46.3 (21)
79.4 (36)
1.55 (0.7 kg/ft)
KM2000
8
20
481.9 (218.6)
79.4x2 (36x2)
10.62 (4.82 kg/ft)
KM300
1
3
63.7 (28.9)
82.7 (37.5)
1.55 (0.7 kg/ft)
KM500
2
5
93.7 (42.5)
74.9 (34)
2.96 (1.34 kg/ft)
KM750
3
7.5
138.9 (63)
77.1 (35)
4.17 (1.89 kg/ft)

Documents

48489249ed2pdf

Product Parts Information, Manual Chain Hoist, KM Series

48489223ed5epdf

Product Information, Manual Chain Hoist, KM & KMX Series
mhd56387ed2pdf

ATEX for Manual Chain Hoist and Trolley

irits1113133-0317atex-kinetic-chain-hoist-flyerpdf

Kinetic Chain Hoist Flyer IRITS-1113-133 0317

48489231ed4dpdf

Product Safety Information, Manual Chain Hoists
48496350ed2bpdf

Product Maintenance Information, Manual Chain Hoist, KM Series
irits1211116manualhoistcatalog01232014pdf

IRITS-1211-116 Manual Hoist Catalog 01232014

47589065ed1apdf

Product Parts Information, Manual Chain Hoist, KMX Series
47589199ed2bpdf

Product Safety Information, Intended for Use in Potentially Explosive Atmospheres
