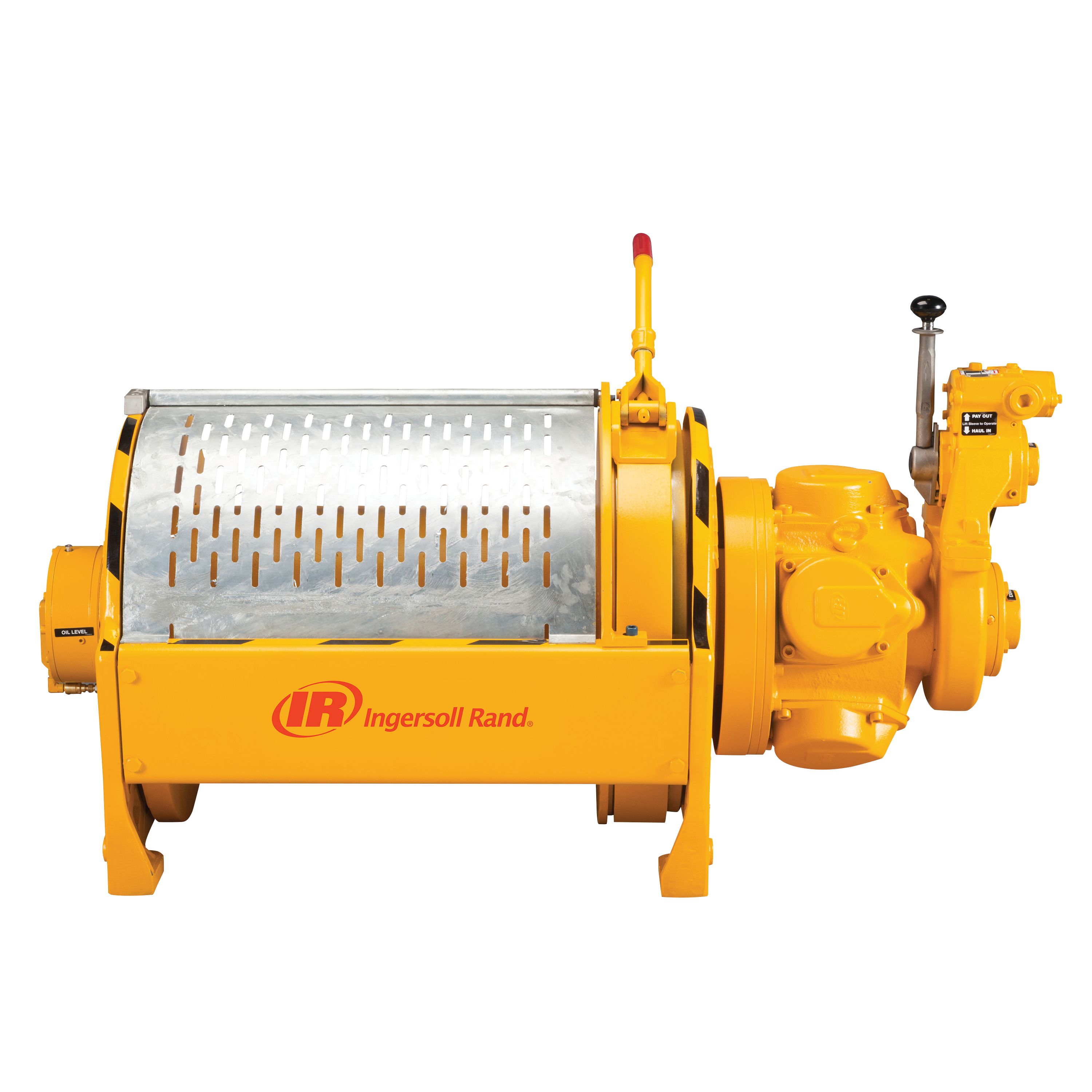

FA5AMR9203600kg Third Genereation Dual Purpose Air Winch btif
Third Generation Dual Purpose Air Winch 920 3600 kg Capacity

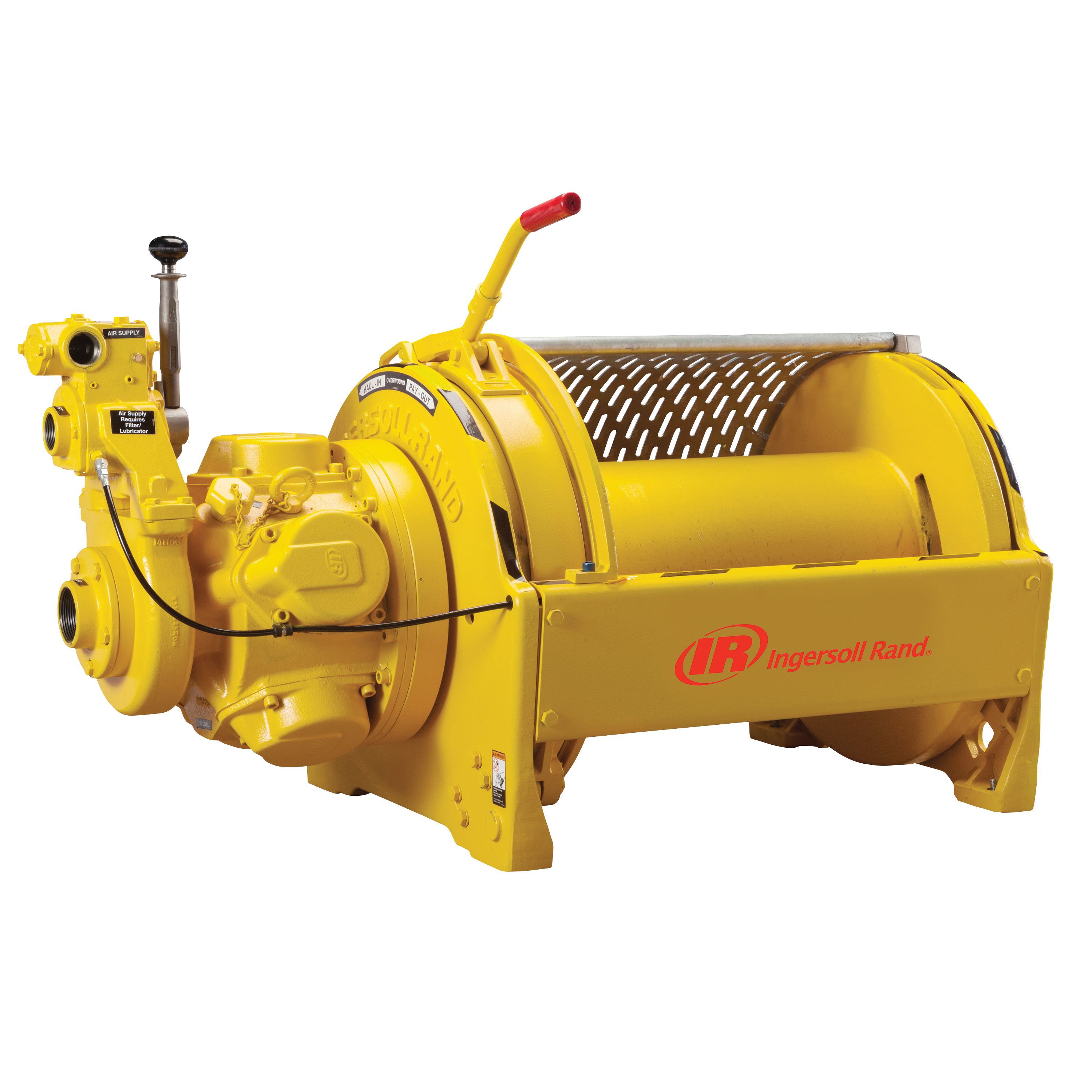

FA5AMR9203600kg Third Genereation Dual Purpose Air Winch btif
Third Generation Dual Purpose Air Winch 920 3600 kg Capacity
Back to the product list

Third Generation™ Dual Purpose (Personnel & Utility) Air Winches

Ingersoll Rand Third Generation Dual Purpose winches maximize the use of your equipment by combing time-tested, durability with enhanced safety features for lifting people. Third Generation Dual Purpose winches meet strict regulations for lifting people or platforms while still performing well for utility purposes. Whether your application is offshore, onshore or marine, when you need to manage costs and keep people safe, Third Generation Dual Purpose winches get the job done.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features



Durability

  • Rugged cast iron and steel construction for extremely long life
  • 18:1 drum to wire rope diameter minimizes unnecessary wear and increases the life of wire rope

Safety

  • Drum guard included for additional protection
  • Lift-to-Shift variable speed lever provides precise control and built-in safety
  • Gearbox-in-drum design reduces size and helps the winch fit in compact applications

Performance

  • Radial piston air motor provides reliable power with adjustable speed for any application
  • Standard drum brake or optional auto disc or auto drum brake provides superior stopping power
  • Self-cleaning control valve improves flow and performance

Model Specifications

Model
Type
Rated Capacity at Top Layer kg (lb)
Lifting Speed at Top Layer m/min (fpm)
Air Consumption with Rated Load m3/min (ft3/min)
Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)
Sound Level as per EN 14492-1 dB(A)
Drum Capacity(1) Rope Length m (ft)
Drum Capacity(1) Rope Diameter mm (in)
Net Weight kg (lb)
FA2BMR24MK1G
Personnel Lifting
920 (2,035)
62 (202)
10 (350)
0.5 (17.3)
87
392 (1287)
13 (1/2)
357 (786)
FA2.5AMR24MK1G
Personnel Lifting
1,420 (3,125)
58 (191)
20 (700)
1.0 (36.6)
87
392 (1287)
13 (1/2)
411 (905)
FA5AMR24MK1G
Personnel Lifting
2,280 (5,035)
41 (136)
20(700)
1.5 (51.5)
89
366 (1200)
20 (3/4)
837 (1842)
FA2BMR24MK1G
Utility Lifting
1,450 (3,200)
37 (122)
10 (350)
0.8 (28.7)
87
392 (1287)
13 (1/2)
357 (786)
FA2.5AMR24MK1G
Utility Lifting
1,860 (4,100)
43 (141)
20 (700)
1.4 (49.6)
87
392 (1287)
13 (1/2)
411 (905)
FA5AMR24MK1G
Utility Lifting
3,600 (8,000)
13 (43)
20 (700)
4.6 (162.8)
89
366 (1200)
20 (3/4)
837 (1842)

Personnel Lifting ratings at 8:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

Utility Lifting ratings at 5:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

(1) Wire rope is tightly wound with no freeboard.
