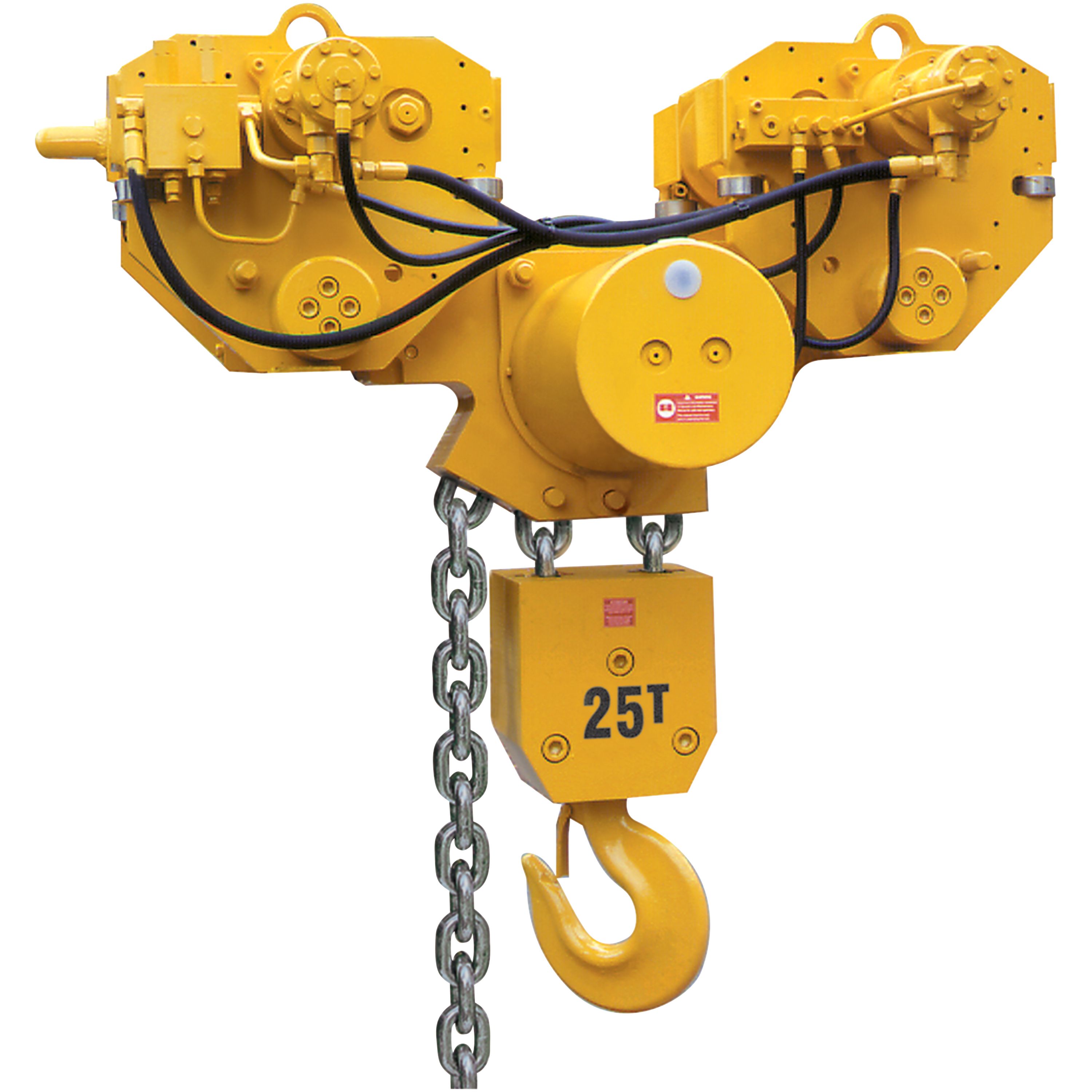

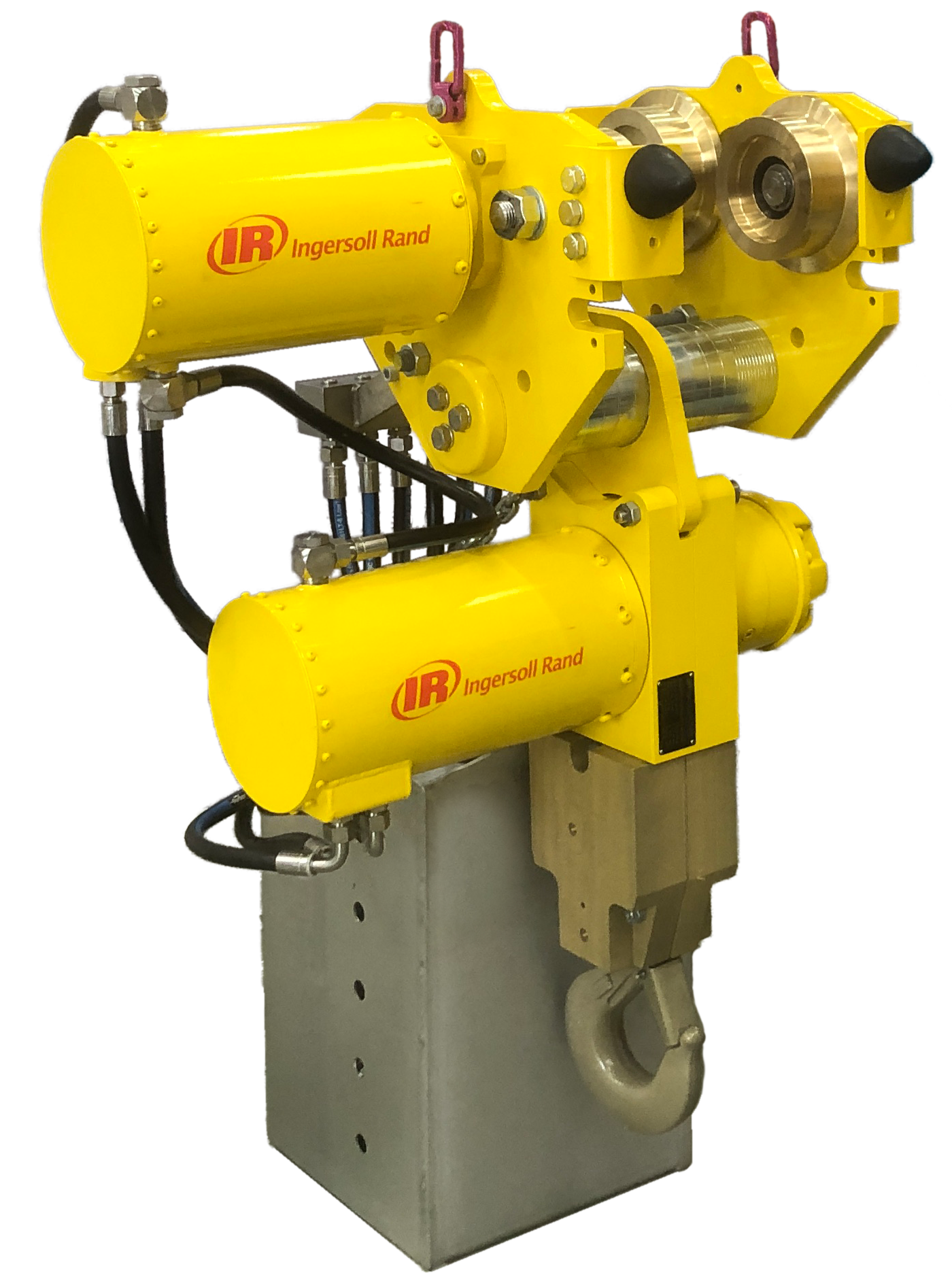

Liftchain 25 ton Hydraulic BOP Trolley Hook
Liftchain 25 ton Hydraulic BOP Trolley Hooks
new image v bop
Liftchain 25 ton Hydraulic BOP Trolley Hook
Liftchain 25 ton Hydraulic BOP Trolley Hooks
new image v bop
Back to the product list

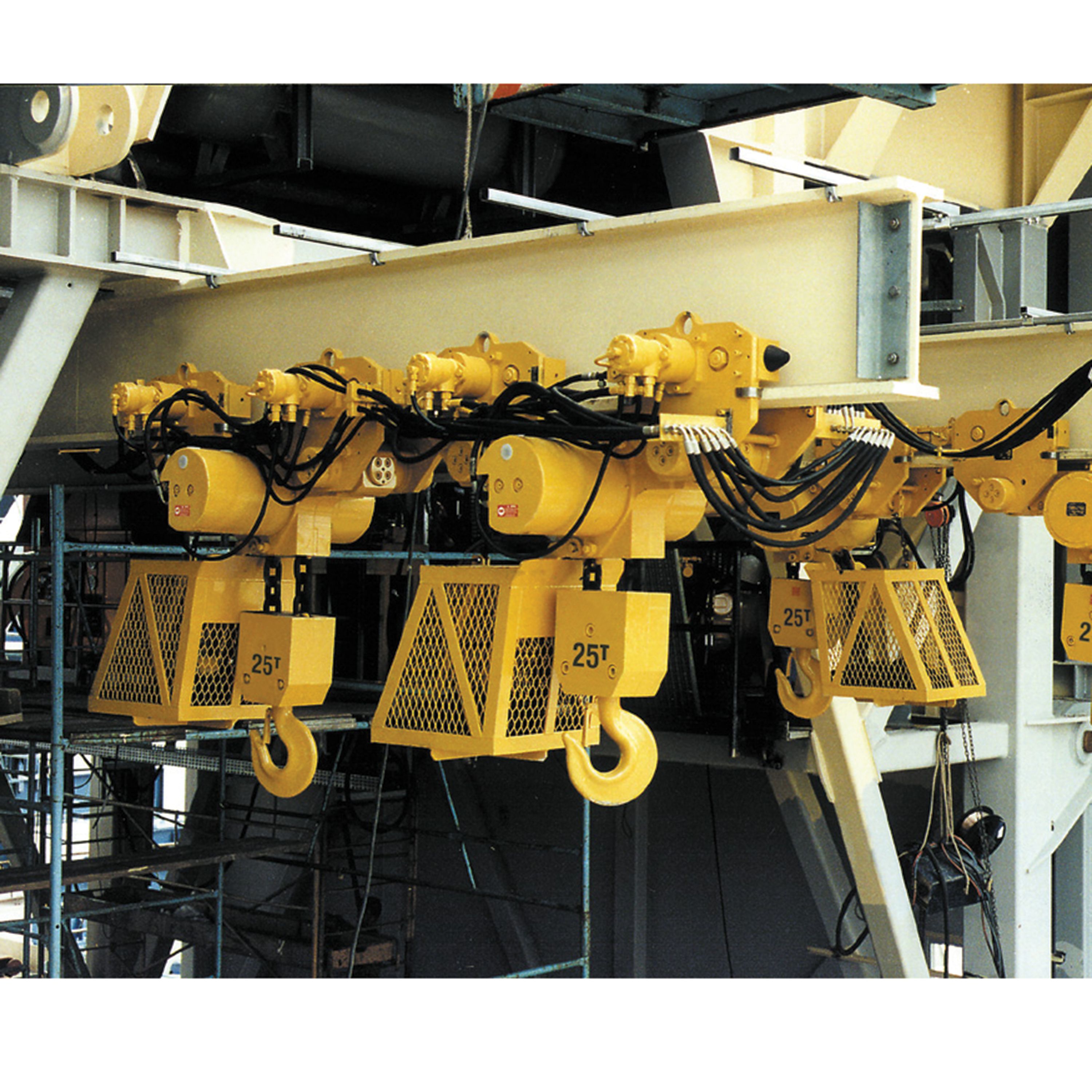

Liftchain Hydraulic BOP Handling Systems

Driven by reliable hydraulic gear motors, Ingersoll Rand’s Liftchain Hydraulic BOP Handling systems are well suited for both offshore and onshore applications. Their all steel construction, corrosion resistant load chain and marine grade paint further adds to their exceptional durability making Liftchain Hydraulic BOP Systems tough enough to survive harsh oil field environments.

“*Our NEW Arctic Range low temperature series (-45 degrees) option is now available in certain capacities.*”
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

Durability

  • Corrosion resistant load chain and marine grade paint
  • Rugged cast iron and steel construction delivers long-life

Safety

  • Limit switch for upper and lower over-travel protection
  • Automatic fail-safe, multi disc motor brake on hoist

Performance

  • Hydraulic motorization offers an incredible smooth operation for precision positioning
  • Very silent operation contributes to greater workplace environment
  • Articulated trolley allows up to 20 degree side pulling operation
  • Orbital motor provides reliable and efficient operation
  • Bottom block mounted on bearing with external lubrication point and water drain
  • Available with bottom hook or clevis

Model Specifications

BS Gear Motor Series - Hoist Sub-Assembly



Model
BS25LC2H2
BS30LC2H3
BS36LC2H3
BS40LC2H4
BS50LC2H4
BS50LC2H2
BS75LC2H3
BS100LC2H4
BS125LC2H5
BS150LC2H6
BS150LCH3
BS200LCH4
Capacity(metric tons)
25
30
36
40
50
50
75
100
125
150
150
200
Falls of load chainper hoist
2
3
3
4
4
2
3
4
5
6
3
4
Min. headroom(in)
44.7
47.6
47.6
48.8
48.8
41.1
46.9
48.5
54.5
59.8
73.4
77.2
Lifting speed at rated load(fpm)
6.2
4.1
4.1
3.6
3.6
7.4
4.9
3.6
3.0
2.5
1.6
1.1
Lifting speed at no load(fpm)
6.2
4.1
4.1
3.6
3.6
7.4
4.9
3.6
3.0
2.5
1.6
1.1
Lowering speed at rated load(fpm)
6.2
4.1
4.1
3.6
3.6
7.4
4.9
3.6
3.0
2.5
1.6
1.1
Working pressure(PSI)
1813
2103
2103
2103
2103
2538
2610
2683
2755
2828
2175
2610
Calibration pressure(PSI)
2465
2538
2538
2538
2538
3045
3045
3045
3190
3190
3045
3045
Nominal flow(gpm)
11
11
11
11
11
13
13
13
13
13
11
13
System weight(lbs)
2208
3753
3753
4084
4084
6843
8609
9051
13024
13907
28256
28918
Chain size(mm)
16x45
16x45
16x45
16x45
16x45
22x66
22x66
22x66
22x66
22x66
32x90
32x90

BS Hydraulic Motor Series - Trolley Sub-Assembly



Model
BS25LC2H2
BS30LC2H3
BS36LC2H3
BS40LC2H4
BS50LC2H4
BS50LC2H2
BS75LC2H3
BS100LC2H4
BS125LC2H5
BS150LC2H6
BS150LCH3
BS200LCH4
Number of wheels per hoist
4
4
4
4
4
8
8
8
8
8
16
16
Std Flange adjustment(in)
6,3-12,4
6,3-12,4
6,3-12,4
6,3-12,4
6,3-12,4
6,3-12,4
6,3-12,4
6,3-12,4
6,3-14,2
6,3-14,2
5,9-12,4
6,7-12,4
Max beam bottom flange thickness(in)
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
4.0
4.0
1.6
1.6
Wheel tread diameter(in)
6.3
8.9
8.9
8.9
8.9
6.3
8.9
8.9
9.8
9.8
8.9
8.9
Wheel loading per pair(lbs)
13797
16556
19868
22075
27594
13797
20695
27594
34492
41391
20695
27594
Trolley Assy length(in)
24
31
31
31
31
56
67
67
81
81
134
134
Number of motors per trolley
1
1
1
1
1
2
2
2
2
2
4
4
Max travelling speed at rated load(fpm)
39
39
39
39
39
33
49
49
30
30
33
33

Documents

ARCTIC RANGE BROCHURE

BOP HANDLING SYSTEMS CATALOG

Options and Accessories

Controls

Ingersoll Rand Hydraulic BOP handling systems can be delivered with a full flow control, meaning that up-down and forward-reverse commands are coming directly from an independent control panel of the rig. This type of control is recommended when the operator has the manage various machines from a unique control room.

The pendant joystick control allows the operator to manage the various motions from a single throttle lever. On CE versions, a side 1/4 turn valve can shut down the system for emergency stop.

Pendant Joystick Control for BOP Handling Systems

Joystick Control, CE Version

Ingersoll Rand engineers have designed various remote control stations from where several hoists can be managed. Typical console includes several individual controls and one simultaneous control joystick to run a complete BOP handling system.

Hydraulic Control Console
Hydraulic Control Console

Ingersoll Rand has delivered many wireless control systems to customers with specific features to match their applications.

  • 2 or 4 hoists control
  • ATEX certified
  • Simultaneous control
  • Real load display

BOP Wireless Control

Wireless Controller

Hydraulic host kit

Hydraulic Supply

Standard hose kits are made of several hoses with 316 stainless steel press fittings at each end and a connecting manifold to be bolted on the beam end. These hose kits exist for either full flow control or joystick pendant control versions.

Festoon Trolley

Standard hose kits are made of several hoses with 316 stainless steel press fittings at each end and a connecting manifold to be bolted on the beam end. These hose kits exist for either full flow control or joystick pendant control versions.

Festoon Trolley for BOP Handling Systems
Rack & Pinion Drive LC2H

Rack & Pinion Drive

When harsh conditions are met in offshore operations, our Rack & Pinion drive system offers a positive engagement. Rack sections of 1.5 meters long have to be welded on the travel beam. The positioning underneath the beam flange prevents dust contamination and ensures long life.

Retention Lug

This additional hanging point on the hoist trolley assembly allows for suspending the BOP stack for storage. While using the retention lug, the hoist drive and brake mechanism are not subject to vibrations under load tension. Light maintenance operations can also be performed on the hoist while the BOP is secured using this lug.

BOP Accessories Retention Lug

Aftermarket Service
