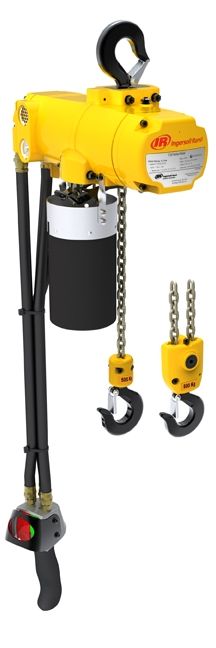

CLK Series Chain Hoists

Designed for production applications and loads up to 1100 lbs, the CLK-Series is the latest addition to Ingersoll Rand's line of air chain hoists. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls. Learn how to choose the appropriate CLK Hoist.

Request a Quote Request Service, Parts or Support

Features

Meets Specifications
Rugged, lightweight and compact design
Disc brake is non-asbestos and spring engaged with air release
Quiet operation <75 dBA sound levels
Upper and lower limit stops prevent dangerous over-travel of the hook
Full flow pendent for maximum control and enhanced load positioning
100% duty cycle multi-vane (6) air motor
Hook or trolley mounted versions available
Steel snap hooks with safety latches
Standard lift is 10 feet; additional lifts are available
Standard pendent length is 6 feet or 4 feet less than lift

Model Specifications

ModelName

CL125K

CL250K

CL500K

Chain falls

Speed at rated load DOWN, fpm (m/min)

37 (11.3)

45 (13.7)

22 (6.7)

Speed at rated load UP, fpm (m/min)

43 (13.1)

32 (9.8)

15 (4.6)

Headroom (Hook Mount), in (mm)

11.5 (292.1)

12.75 (323.9)

Air Consumption, m³/min (per Hoist)

32 (0.91)

Shipping Weight, lbs (kg)

34 (15.4)

38 (17.2)

Capacity, lbs (kg)

275 (125)

550 (250)

1,100 (500)
