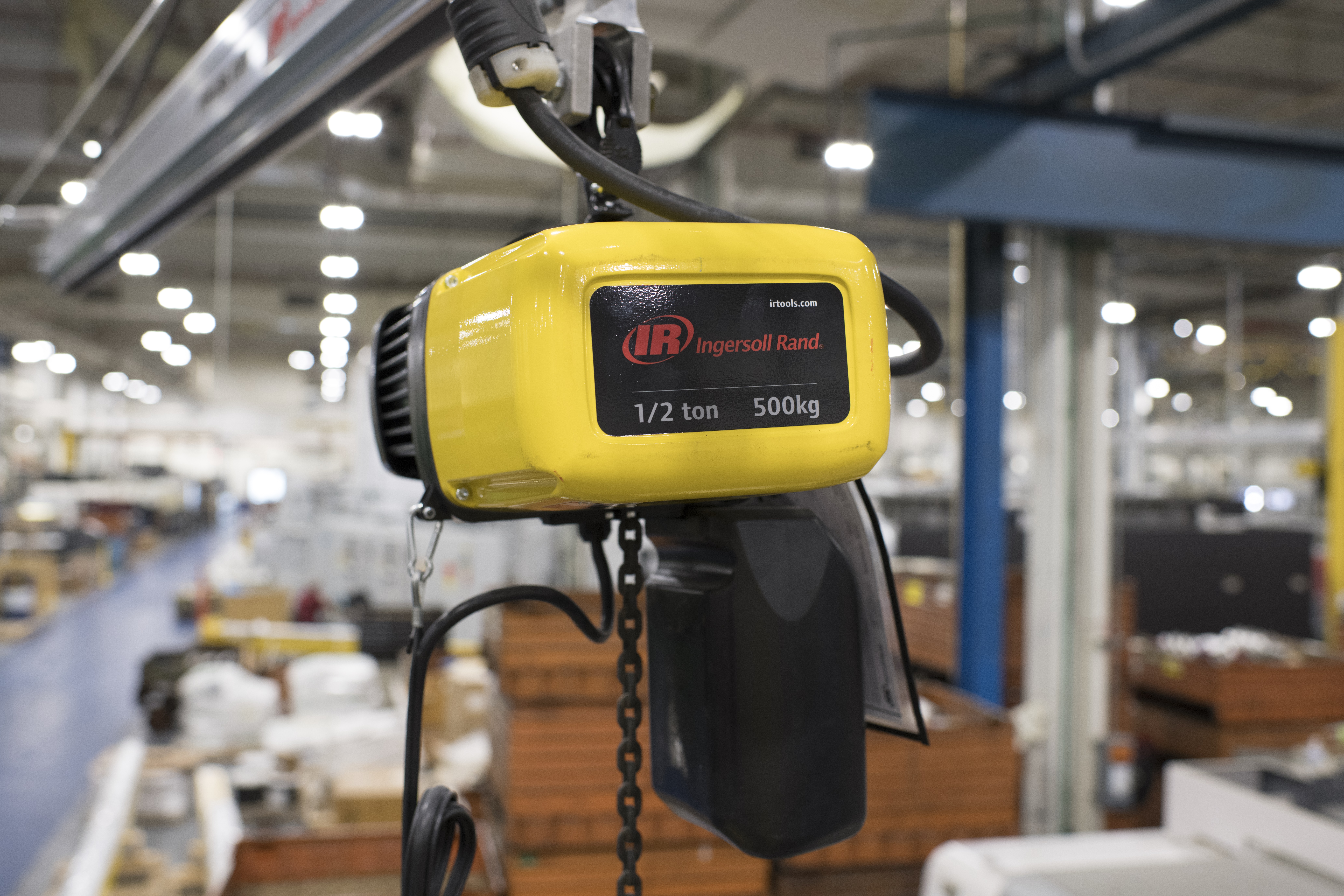

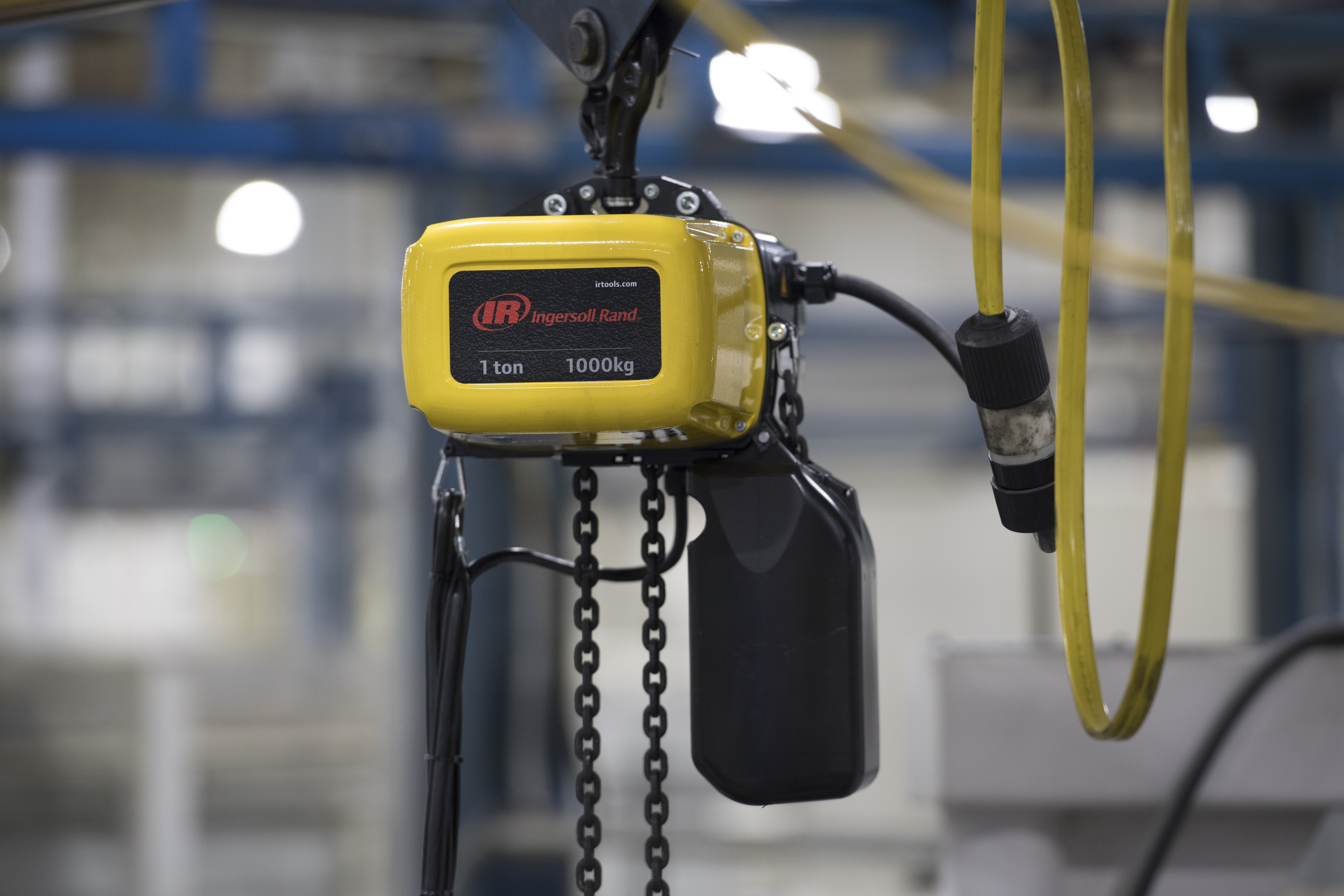

ELK Series Electric Chain Hoists

The new ELK Series hoists that brings you durability, modularity, flexibility packed in an extremely lightweight, modern design. Built to meet an A5/M5 duty cycle classification, the ELK hoist is designed for tough, industrial grade applications. The ELK joins Ingersoll Rand's CLK, MLK and HLK premium, class leading hoist family.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

  • M5 or M4 Duty cycle rating (2m/M5 or 1Am/M4 FEM/ISO) designed for both industrial and manufacturing applications
  • Built-on motor with cooling fins and fan wheel for reduction in operating temperature and disassembly time
  • Modular design with interchangeable gear box for reduced maintenance time, parts and complexity
  • Extremely lightweight, compact profile allows for faster, safer installation and disassembly; ideal for mobile applications

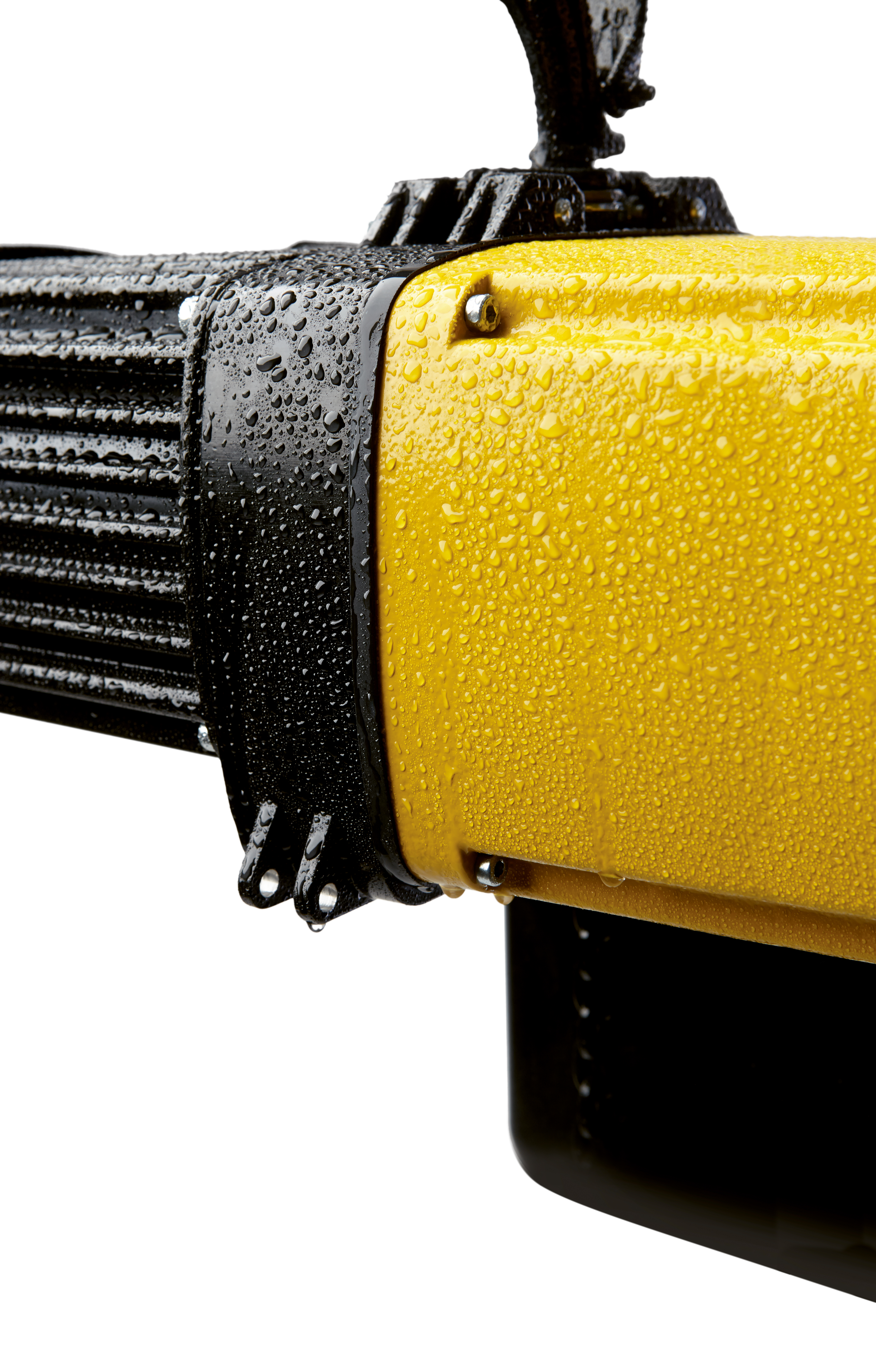

  • IP65 rating with built in drains provides water resistance and dust tight protection; great for outdoor use
  • New custom chain profile with magnesium phosphate coating for corrosion resistance and extended life
  • 3-stage helical gearing for quiet operation
  • Closed gearbox with permanent lubrication
  • Hook mount, lug mount, push/pull trolley, and motorized trolley upper suspensions available
  • Custom configurations available (ATEX certified, food grade, tandem, VFD, wind turbine custom, etc)
  • 5:1 safety rating
  • Backed by 3 year warranty

Model Specifications



Capacity (Metric Tons)
Capacity (lbs)
Base Model
Phase
Voltage
Speed
Speed (ft/min)
Speed (m/min)
Duty Rating HMI (FEM)
Power (HP)
Power (kW)
Falls
Headroom (In)
Headroom (mm)
Weight @ 10' Lift (lbs)
Weight @ 10' Lift (kg)
Chain Weight (lbs/ft)
Chain Weight (kg/m)
1/4t
550
ELK25-1NS25 1 ph
Single
115 / 230
Single
16
5
H4 (2m)
0.34
0.25
1
15.0"
381
37.5
17
0.23
0.34
1/4t
550
ELK50-1NS25 1 ph
Single
115 / 230
Single
32
9.6
H4 (2m)
0.74
0.55
1
19.2"
488
57.3
26
0.46
0.69
1/2t
1100
ELK50-1NS50 1 ph
Single
115 / 230
Single
16
5
H4 (2m)
0.74
0.55
1
19.2"
488
57.3
26
0.46
0.69
1t
2200
ELK50-2NS100 1 ph
Single
115 / 230
Single
8
2.5
H4 (2m)
0.74
0.55
2
20.8"
528
61.7
28
0.46
0.69
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
1/8t
275
ELK25-1ND12
Three
230 / 460 / 575 / 380
Dual
32/8
9.6/2.5
H4 (3m)
0.50
0.37
1
15.0"
381
37.5
17
0.23
0.34
1/4t
550
ELK25-1ND25
Three
230 / 460 / 575 / 380
Dual
32/8
9.6/2.5
H4 (2m)
0.50
0.37
1
15.0"
381
37.5
17
0.23
0.34
1/4t
550
ELK50-1HD25
Three
230 / 460 / 575 / 380
Dual
63/16
19.5/5
H4 (2m)
1.00
0.72
1
19.2"
488
57.3
26
0.46
0.69
1/2t
1100
ELK50-1ND50
Three
230 / 460 / 575 / 380
Dual
32/8
9.6/2.5
H4 (2m)
1.00
0.72
1
19.2"
488
57.3
26
0.46
0.69
1t
2200
ELK50-2ND100
Three
230 / 460 / 575 / 380
Dual
16/4
5/1.3
H4 (2m)
1.00
0.72
2
20.8"
528
61.7
28
0.46
0.69
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
1/2t
1100
ELK100-1HD50
Three
230/460/575/380
Dual
63/16
19.5/5
H4 (2m)
3.70
2.80
1
24.2"
617
136.6
62
0.92
1.37
1t
2200
ELK100-1ND100
Three
230/460/575/380
Dual
32/8
9.6/2.5
H4 (2m)
3.70
2.80
1
24.2"
617
136.6
62
0.92
1.37
2t
4400
ELK100-2ND200
Three
230/460/575/380
Dual
16/4
5/1.3
H4 (2m)
3.70
2.80
2
26.6"
676
145.5
66
0.92
1.37
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
2t
4400
ELK200-1ND200
Three
230/460/380
Dual
32/8
9.6/2.4
H4 (1m)
6.00
4.50
1
27.1"
688
205
93
1.49
2.22
3t
6600
ELK200-2ND300
Three
230/460/380
Dual
16/4
4.8/1.2
H4 (2m)
6.00
4.50
2
29.8"
756
224
102
1.49
2.22
5t
11000
ELK250-2ND500
Three
230/460/380
Dual
16/4
4.8/1.2
H4 (2m)
6.00
4.50
2
34.4"
874
257
117
2.37
3.53
