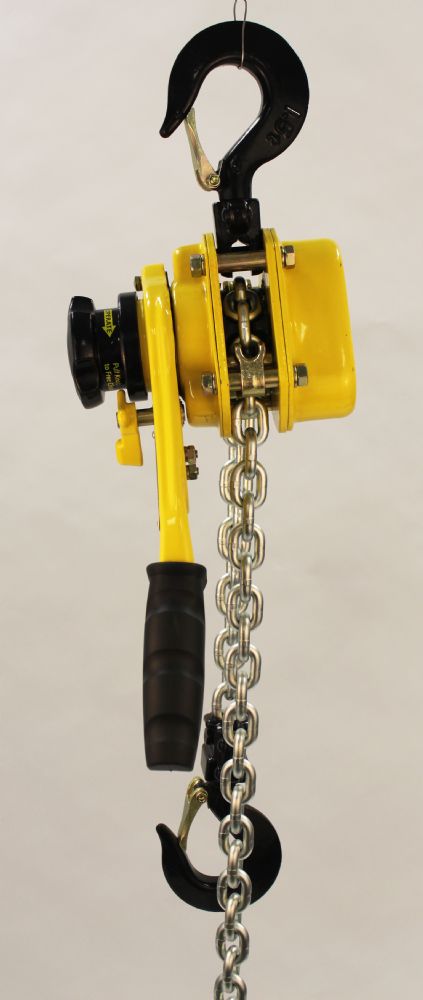

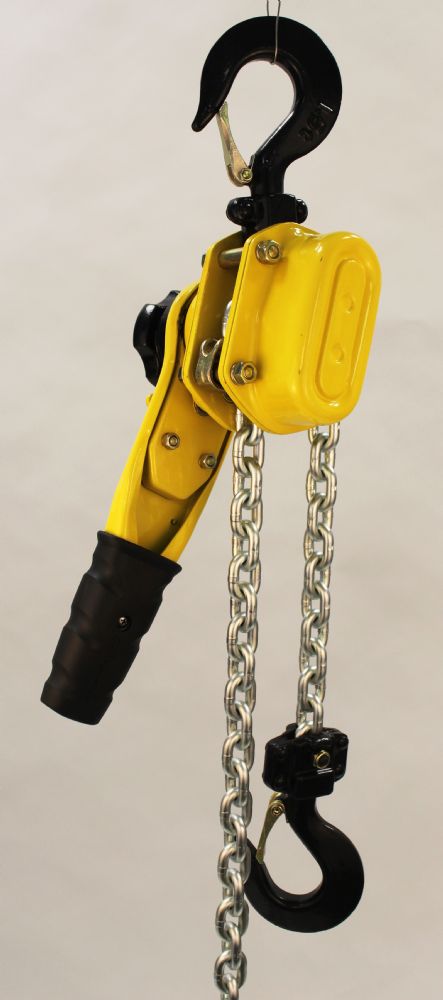

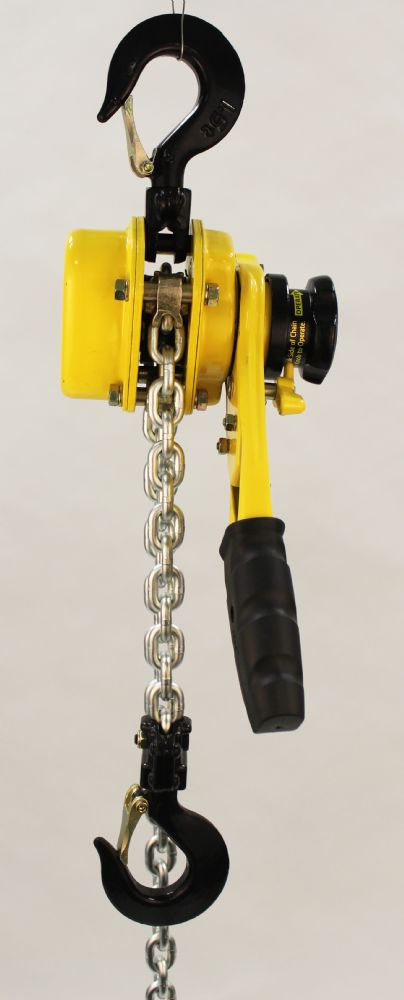

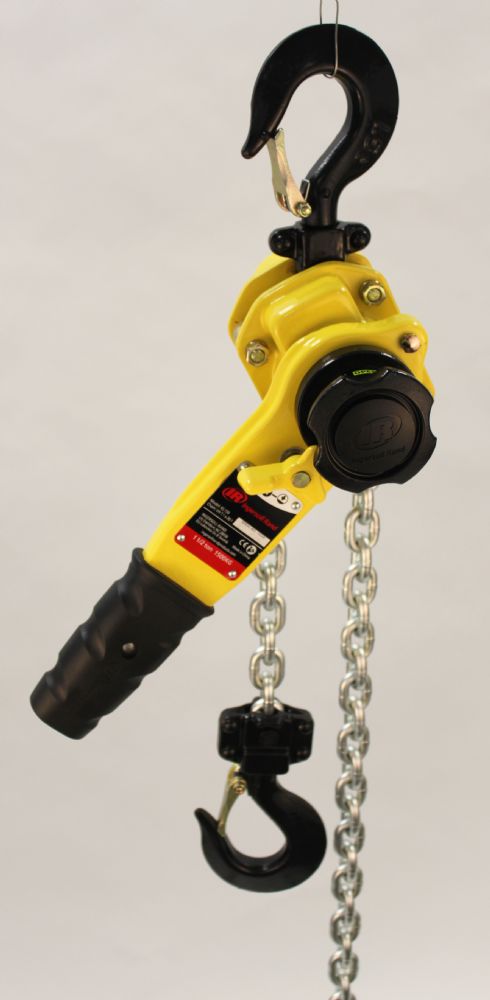

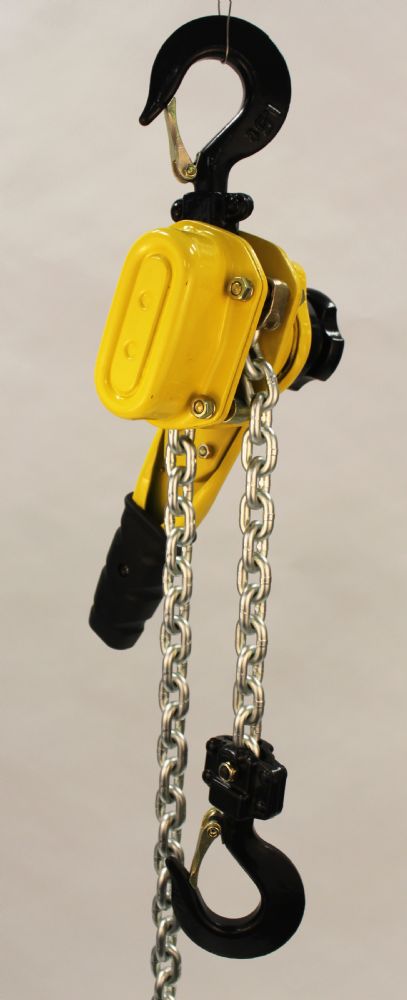

KL Kinetic Series Lever Hoists

Ingersoll Rand Kinetic Series premium manual chain hoists are engineered for the harshest of environments and deliver exceptional durability to meet your toughest demands. With grade 100 Electro-galvanized chain, cast hook latches, all steel construction and extensive use of bearings these hoists are designed to LAST with minimal down time.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

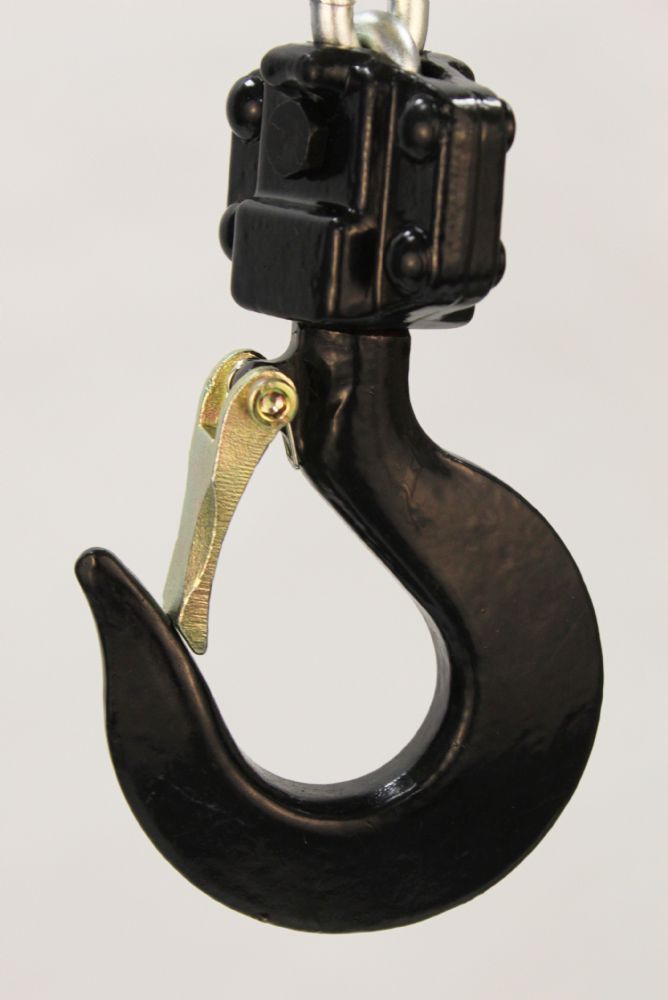

  • Heavy duty cast hook latches designed for less latch replacements

  • Corrosion resistant finish for additional durability

  • Ergonomic handle grip to reduce fatigue

  • Capacities from .75 metric ton to9 metric ton

  • Single chain fall through 3 metric tons; less chain equals less weight

  • Full bearing construction on load sprocket and pinion shaft for reduced chain pull effort and longer life

  • Fused brake disc for exceptional long brake life

  • Premium grade 100, Electro-Galvanized chain designed for exceptional corrosion resistance for increased durability.

  • Compact design for the tightest of spaces

Model Specifications

ModelName
Chain falls
Capacity (meteric tons)
Shipping Weight w/ 10 lift, lbs (kg)
Pull to Lift Rated Load, lbs (kg)
Chain wt. - 1 ft. of lift lbs.
KL075
1
0.75
13.4 (6.1)
48.3 (21.9)
0.47 (0.21 kg/ft)
KL100
1
1
13.9 (6.3)
66.1 (30)
0.47 (0.21 kg/ft)
KL150
1
1.5
18.7 (8.5)
68.1 (30.9)
0.74 (0.34 kg/ft)
KL300
1
3
31.3 (14.2)
83.6 (37.9)
1.48 (0.67 kg/ft)
KL600
2
6
58.6 (26.6)
85.9 (39)
2.95 (1.34 kg/ft)
KL900
3
9
102.5 (46.5)
88.1 (40)
4.43 (2.01 kg/ft)

Documents

irits1113134klhoistflyerrev1pdf

KL Kinetic Flyer Rev1

irits1211116manualhoistcatalog01232014pdf

IRITS-1211-116 Manual Hoist Catalog 01232014

48488878ed2a6pipdf

Product Information, Lever Chain Hoists KL Series

48489009ed2pdf

Product Parts Information, Lever Chain Hoists KL Series

48488993ed1a6pdf

Product Safety Information, Lever Chain Hoists

48496368ed1pdf

Product Maintenance Information, Lever Chain Hoists KL Series
