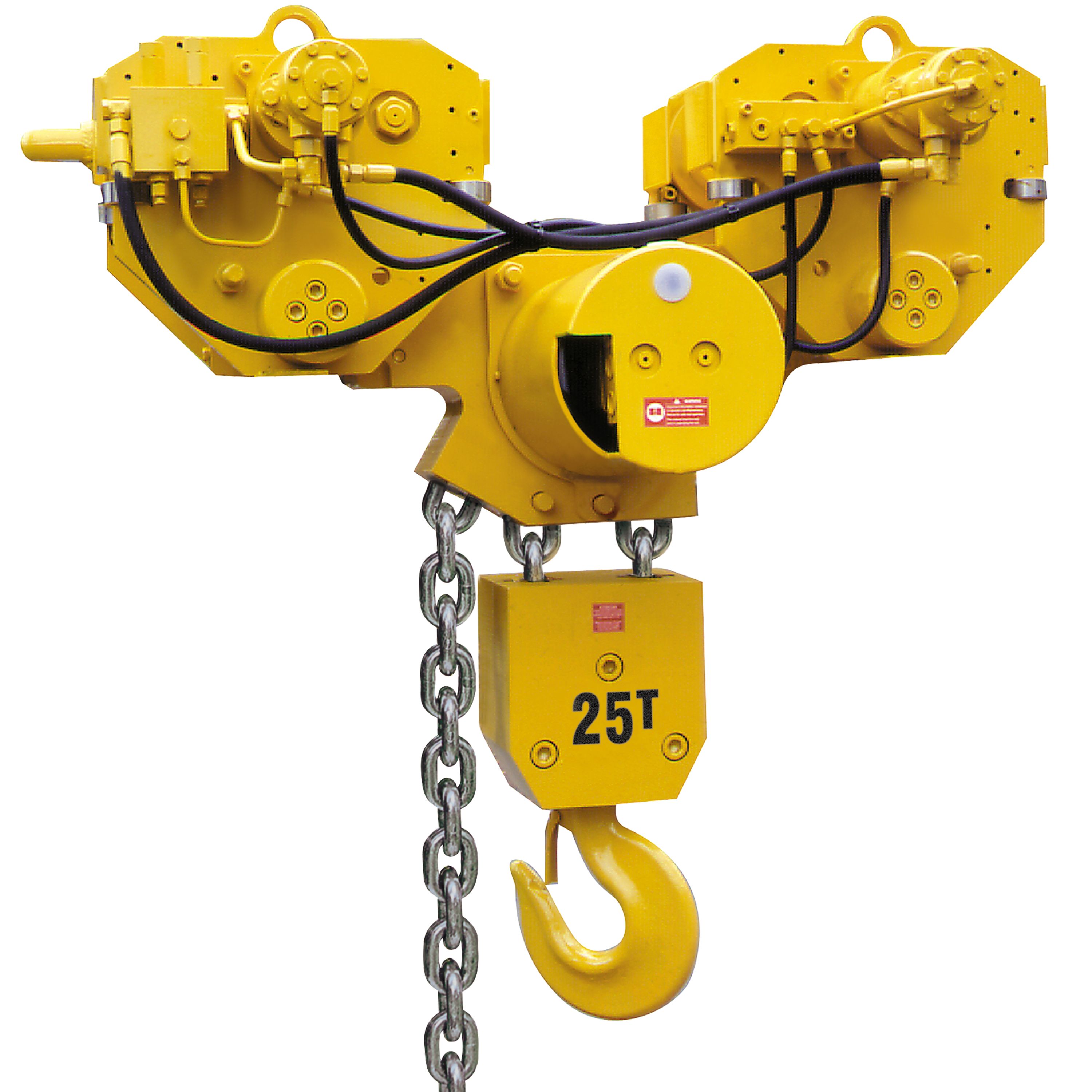

hoists Liftchain Air 25 ton Hoist Hook Trolley hero

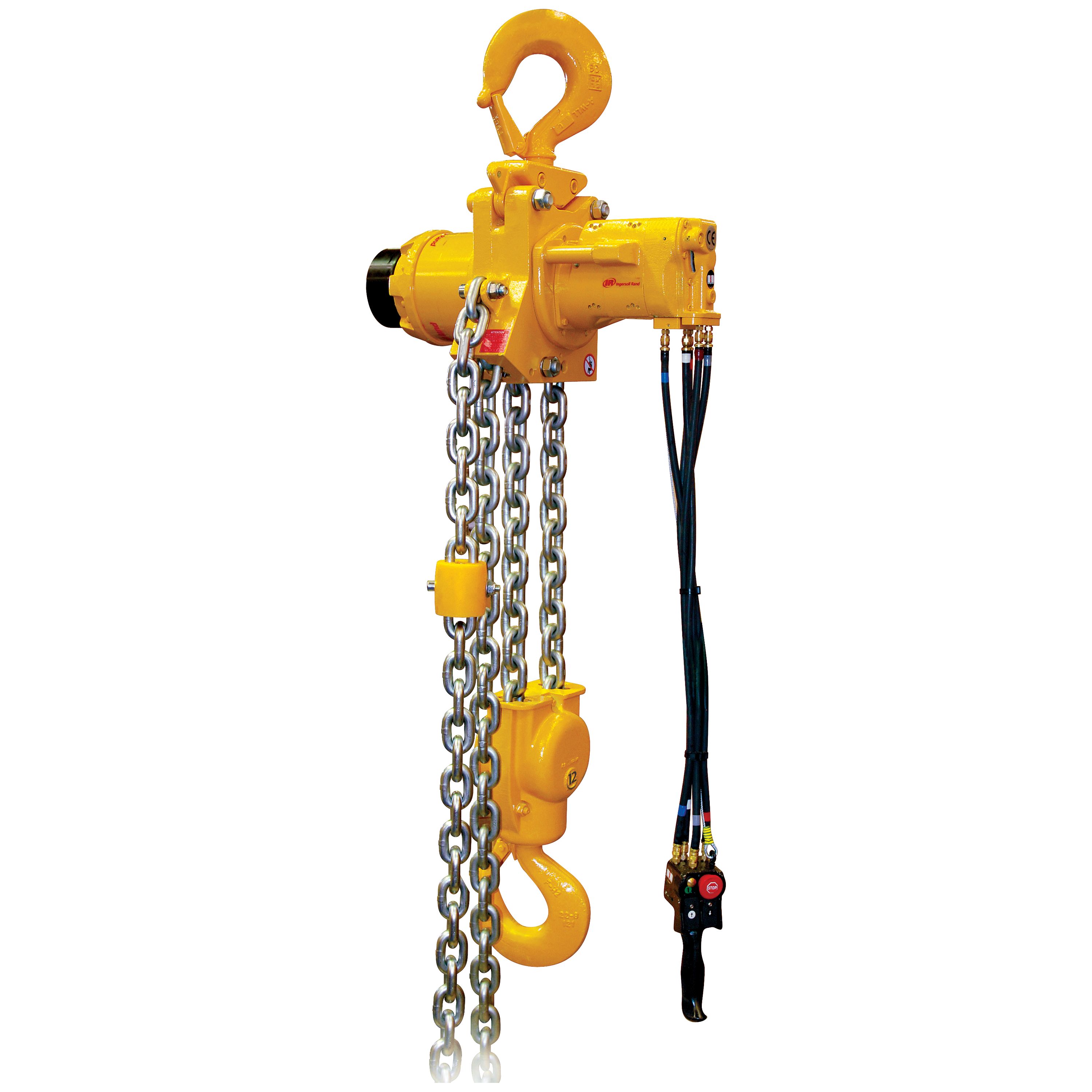

hoists Liftchain Air 50 ton Hoist Hook hero

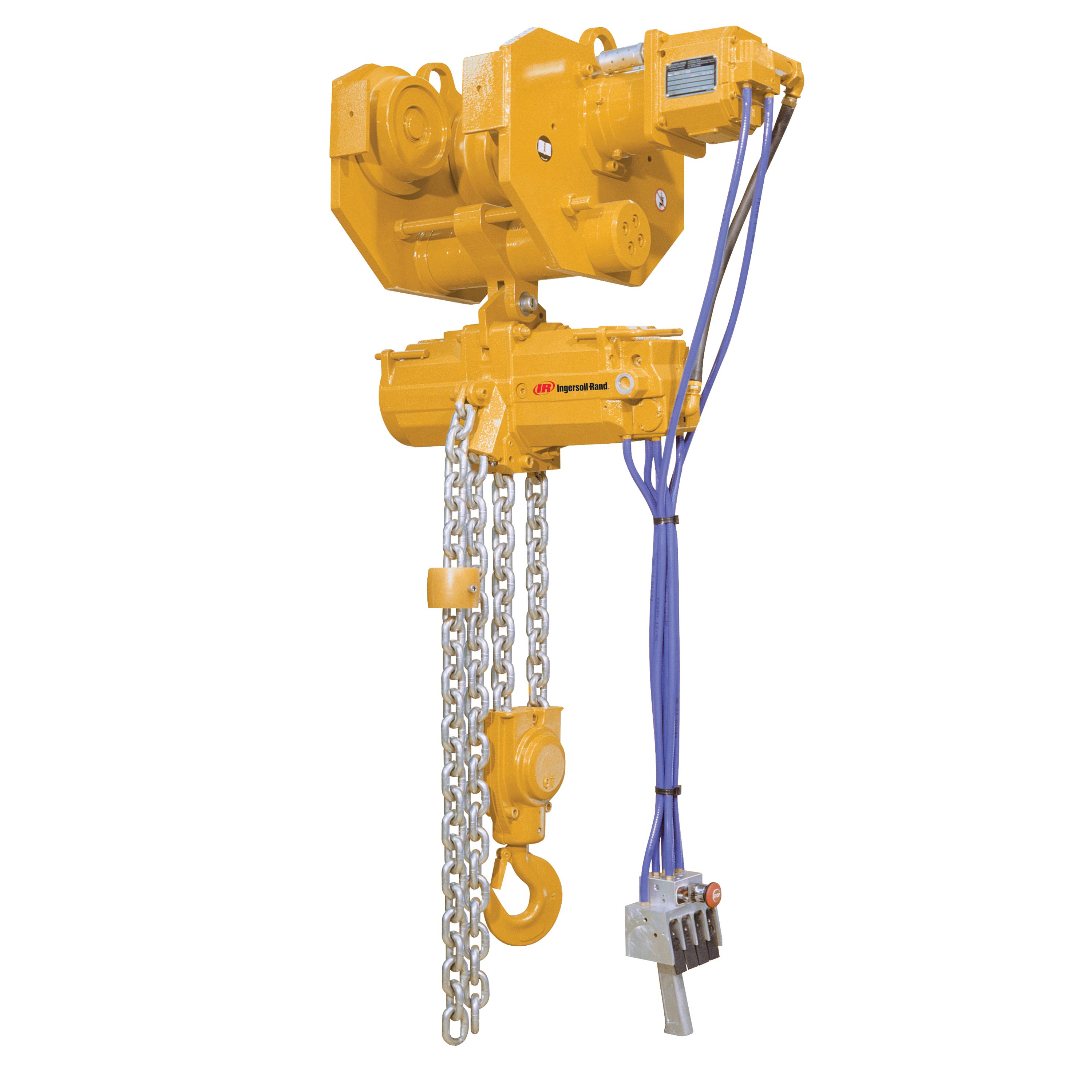

hoists Liftchain Air 6100 ton Hoist fl
hoists Liftchain Air 6100 ton Hoist Hook hero
hoists Liftchain Air 6100 ton Hoist Low Headroom Trolley fl
hoists Liftchain Air 6100 ton Hoist Ultralow Headroom Trolley fl
hoists Liftchain Air 25 ton Hoist Hook Trolley hero
hoists Liftchain Air 50 ton Hoist Hook hero
hoists Liftchain Air 6100 ton Hoist fl
hoists Liftchain Air 6100 ton Hoist Hook hero
hoists Liftchain Air 6100 ton Hoist Low Headroom Trolley fl
hoists Liftchain Air 6100 ton Hoist Ultralow Headroom Trolley fl
Back to the product list

Liftchain® Air Hoists

Liftchain air chain hoists are the ideal choice when high speed, high duty-cycle, variable speed, precision spotting and harsh environment operation are the determining factors. Enhanced safety is provided by CE-certified models that include overload protection, emergency stop and a main air shut-off valve. Featuring a compact, robust and modular design, our Liftchain air hoists come in a variety of configurations including hook mount or with plain, geared or motorized trolleys. With numerous options including spark resistant ATEX certification, Liftchain hoists are ideal for any environment, including industrial, oil & gas drill rigs, FPSO and FLNG vessels, and underground mining. Ingersoll Rand hoists offer premium features at a great price…and performance that is beyond tough!
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

Durability

  • Rugged, compact and lightweight all steel construction adaptable for any environment
  • Grade 80 calibrated corrosion-resistant load chain
  • Automatic multi disc brake fully enclosed for better corrosion resistance
  • Drain holes in block prevent deterioration due to trapped water
  • Stainless steel load chain available on 1T and 2T models
  • Cast iron or iron control pendant for long-life operation

Safety

  • Suitable for explosive environments per ATEX Zone 2 standard (ATEX Zone 1 package optional)
  • Fail-safe brake holds the load in any situation
  • CE-certified models include an overload protection device for safe operation
  • Overload protection device ensures safe operation
  • Upper and lower limit switches integrated in hoist body provide better protection

Performance

  • Virtually maintenance-free gear-type air motor with minimal moving parts
  • Variable speed for precision spotting control
  • Ball bearing mounted bottom hook for easier, smoother turning under load
  • -20°C design temperature for cold weather operation (optional on some models)

Model Specifications

Model
Type
Lifting Capacity Metric Tons
Reeves of Chain
Headroom mm (in)
Trolley Flange Adjustment Range mm (in)
Hoist Weight with 3m (10ft) of chain kg (lb)
Trolley Weight(1) kg (lb)
Weight per additional meter of lift kg (lb)
LC2A015SI
Hook
1.5
1
409 (16.1)
-
38 (84)
-
1.5 (3.3)
LC2A030DI
Hook
3
2
549 (21.6)
-
48 (106)
-
3.0 (6.6)
LC2A040SI
Hook
4
1
580 (22.8)
-
90 (198)
-
3.8 (8.4)
LC2A060QI
Hook
6
4
653 (25.7)
-
74 (163)
-
6.0 (13.2)
LC2A060SI
Hook
6
1
717 (28.2)
-
125 (276)
-
5.7 (12.6)
LC2A080DI
Hook
8
2
807 (31.8)
-
118 (260)
-
7.6 (16.8)
LC2A120DI
Hook
12
2
945 (37.2)
-
170 (375)
-
11.4 (25.1)
LC2A125SI
Hook
12.5
1
865 (34.1)
-
395 (871)
-
10.7 (23.6)
LC2A180TI
Hook
18
3
1,063 (41.9)
-
277 (611)
-
17.1 (37.7)
LC2A250QI
Hook
25
4
1,156 (45.5)
-
324 (714)
-
23.0 (50.7)
LC2A250DI
Hook
25
2
1,235 (48.6)
-
558 (1,230)
-
21.4 (47.2)
LC2A375TI
Hook
37.5
3
1,484 (58.4)
-
855 (1,885)
-
32.1 (70.8)
LC2A500QI
Hook
50
4
1,590 (62.6)
-
965 (2,127)
-
42.8 (94.4)
LCA750TI
Hook
75
3
2,338 (92.0)
-
1,700 (3,748)
-
73.5 (162.0)
LCA1000QI
Hook
100
4
2,455 (96.7)
-
2,200 (4,850)
-
98.0 (216.1)
LC2A015SI
Trolley
1.5
1
480 (18.9)
80-200 (3.2-7.9)
38 (84)
57 (126)
1.5 (3.3)
LC2A030DI
Trolley
3
2
592 (23.3)
80-200 (3.2-7.9)
48 (106)
55 (121)
3.0 (6.6)
LC2A040SI
Trolley
4
1
590 (23.2)
80-200 (3.2-7.9)
90 (198)
55 (121)
3.8 (8.4)
LC2A060QI
Trolley
6
4
702 (27.6)
100-310 (3.9-12.2)
74 (163)
143 (315)
6.0 (13.2)
LC2A060SI
Trolley
6
1
730 (28.7)
100-310 (3.9-12.2)
125 (276)
142 (313)
5.7 (12.6)
LC2A080DI
Trolley
8
2
815 (32.1)
100-310 (3.9-12.2)
118 (260)
142 (313)
7.6 (16.8)
LC2A120DI
Trolley
12
2
995 (39.2)
130-310 (5.1-12.2)
170 (375)
182 (401)
11.4 (25.1)
LC2A125SI
Trolley
12.5
1
1,000 (39.4)
160-310 (6.3-12.2)
395 (871)
175 (386)
10.7 (23.6)
LC2A180TI
Trolley
18
3
1,195 (47.1)
140-310 (5.5-12.2)
277 (611)
375 (826)
17.1 (37.7)
LC2A250QI
Trolley
25
4
1,240 (48.8)
140-310 (5.5-12.2)
324 (714)
376 (829)
23.0 (50.7)
LC2A250DI
Trolley
25
2
990 (39.0)
160-310 (6.3-12.2)
558 (1,230)
377 (831)
21.4 (47.2)
LC2A375TI
Trolley
37.5
3
1,134 (44.6)
160-310 (6.3-12.2)
855 (1,885)
730 (1,609)
32.1 (70.8)
LC2A500QI
Trolley
50
4
1,182 (46.5)
160-310 (6.3-12.2)
965 (2,127)
770 (1,698)
42.8 (94.4)
LCA750TI
Trolley
75
3
1,845 (72.6)
160-310 (6.3-12.2)
1,700 (3,748)
2,800 (6,172)
73.5 (162.0)
LCA1000QI
Trolley
100
4
1,901 (74.8)
160-310 (6.3-12.2)
2,200 (4,850)
2,500 (5,512)
98.0 (216.1)
LC2A015SIL
Low Profile
1.5
1
275 (10.8)
81-310 (3.2-12.2)
38 (84)
82 (126)
1.5 (3.3)
LC2A030DIL
Low Profile
3
2
386 (15.2)
81-310 (3.2-12.2)
48 (106)
82 (121)
3 (6.6)
LC2A060QIL
Low Profile
6
4
465 (18.3)
120-310 (4.7-12.2)
74 (163)
176 (315)
6 (13.2)
LC2A060SIL
Low Profile
6
1
475 (18.7)
140-310 (5.5-12.2)
125 (276)
375 (313)
5.7 (12.6)
LC2A080DIL
Low Profile
8
2
590 (23.2)
120-310 (4.7-12.2)
118 (260)
182 (313)
7.6 (16.8)
LC2A120DIL
Low Profile
12
2
670 (26.4)
140-310 (5.5-12.2)
170 (375)
370 (401)
11.4 (25.1)
LC2A180TIL
Low Profile
18
3
730 (28.7)
210-310 (8.3-12.2)
277 (611)
413 (826)
17.1 (37.7)
LC2A250QIL
Low Profile
25
4
775 (30.5)
160-310 (6.3-12.2)
324 (714)
416 (829)
23 (50.7)
