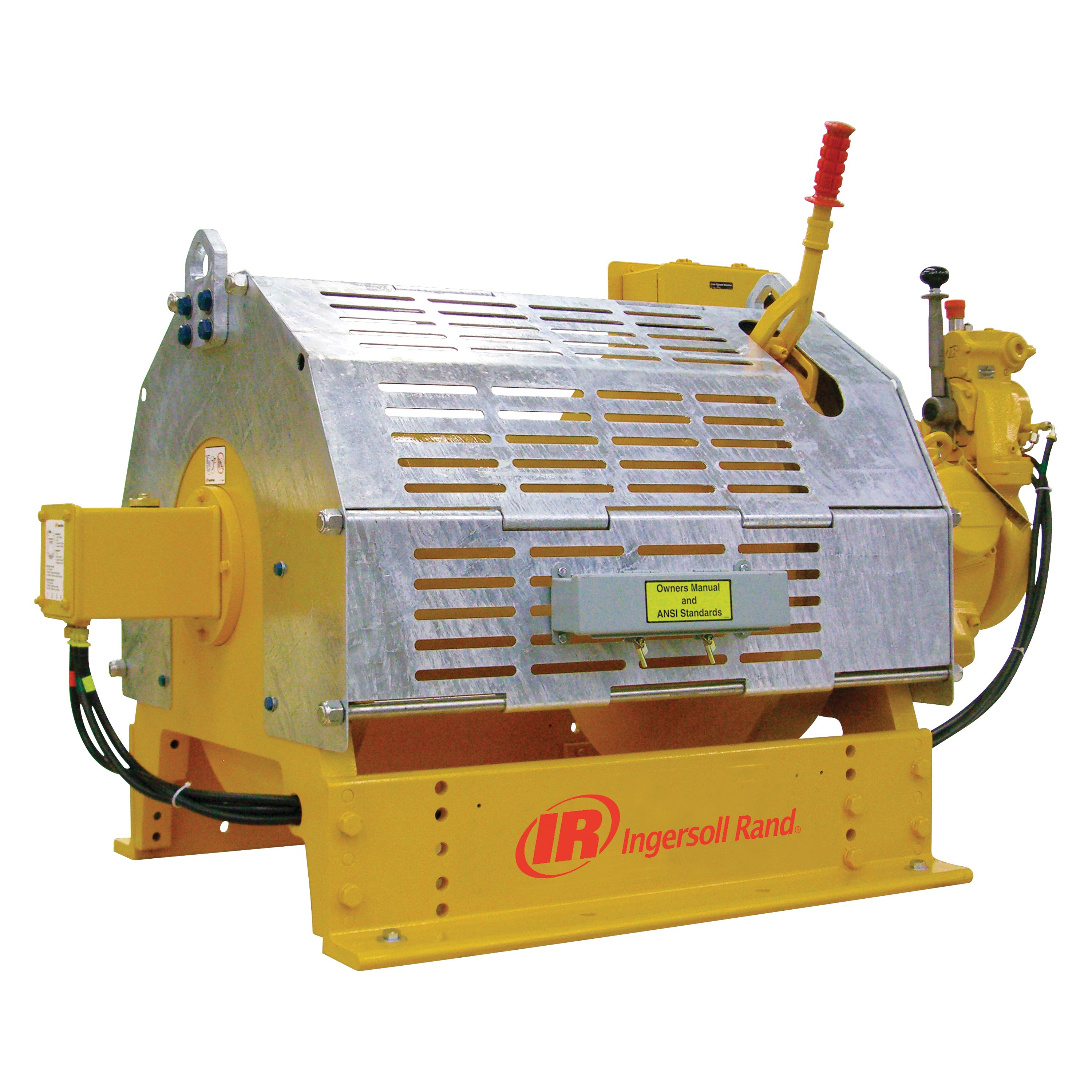

FA2i Infinity Series Dual Purpose Air Winch
FA2i Infinity Series Dual Purpose Air Winch 1450 2000 kg Capacity

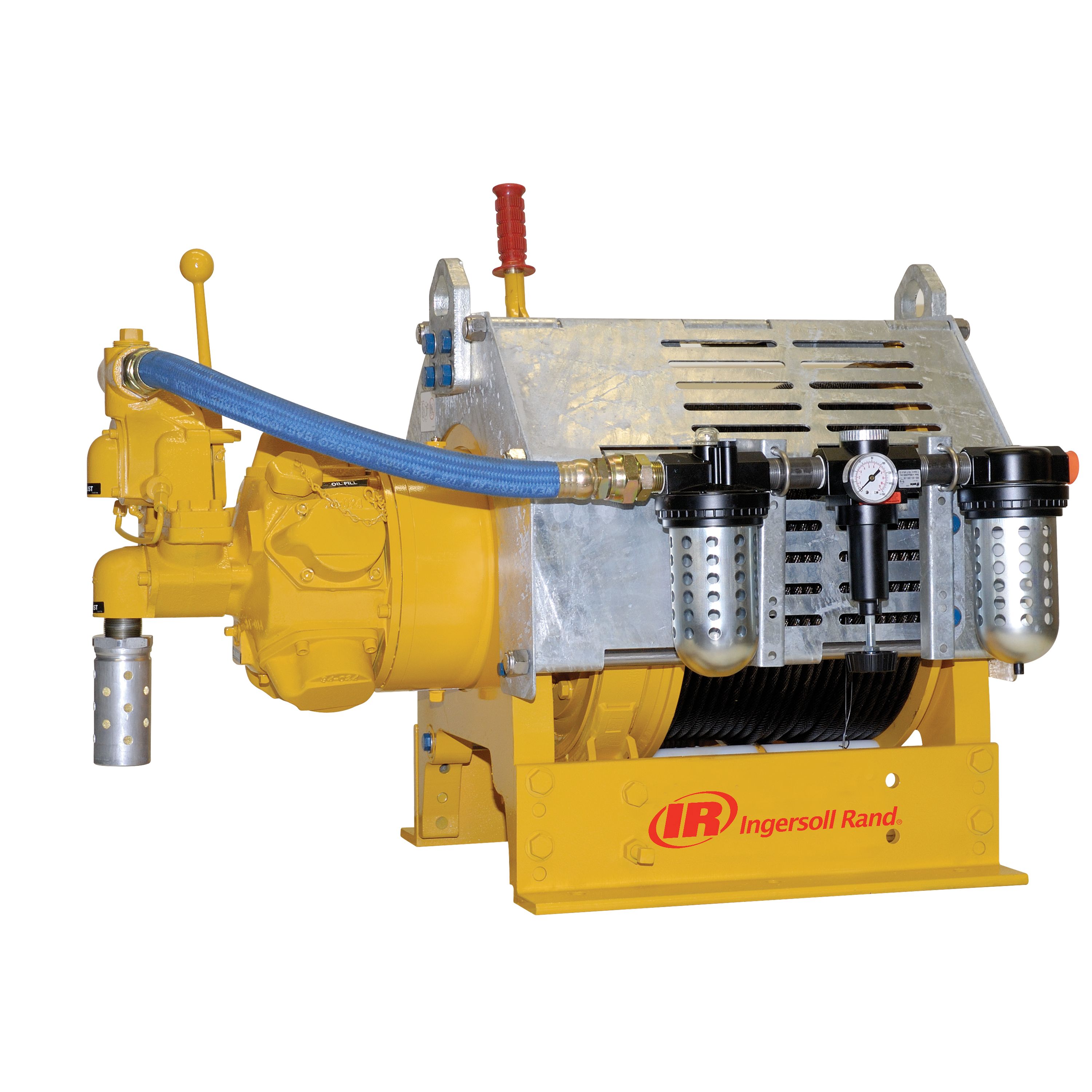

FA2i14502000kg Dual Purpose Winch l

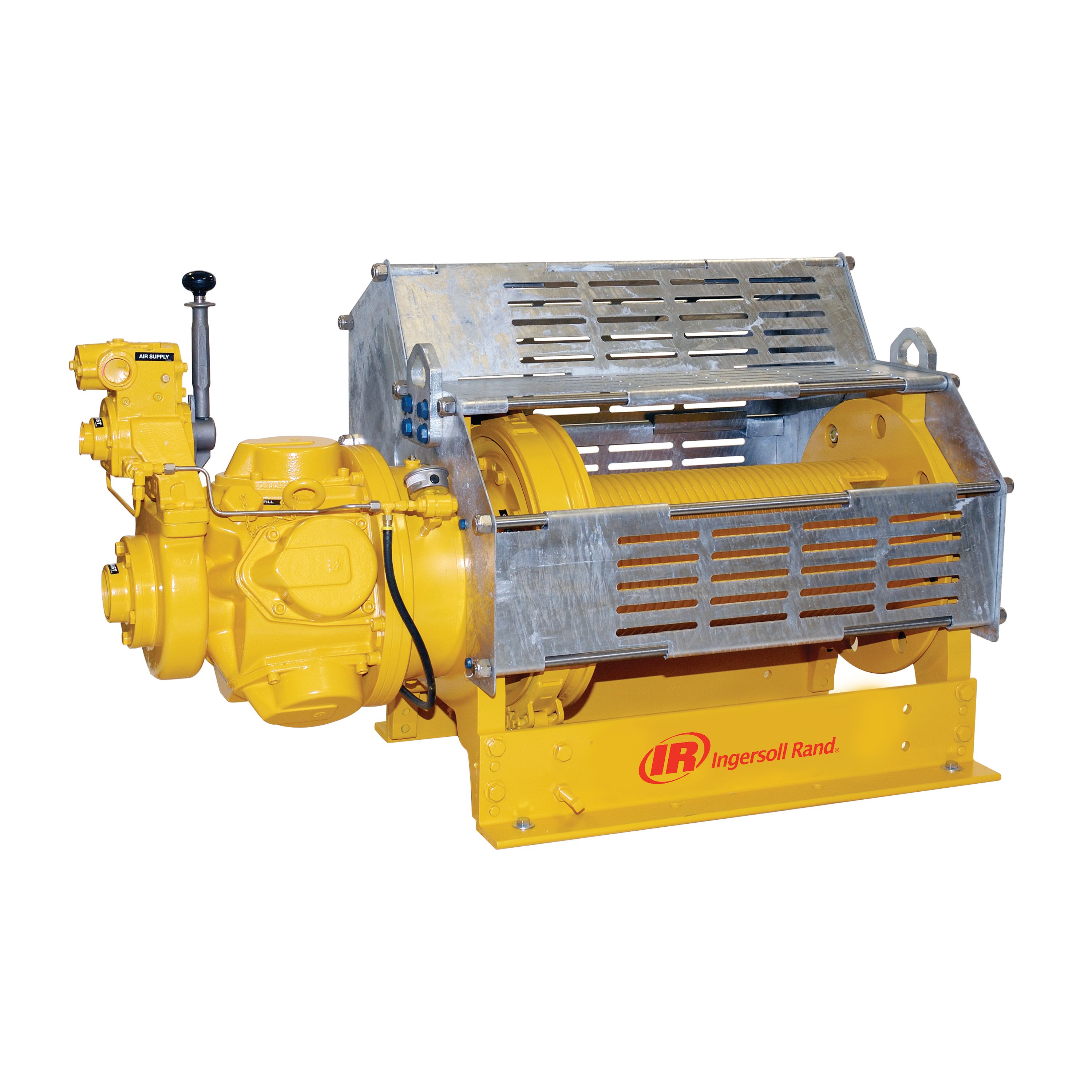

FA2i14502000kg Dual Purpose Winch rf

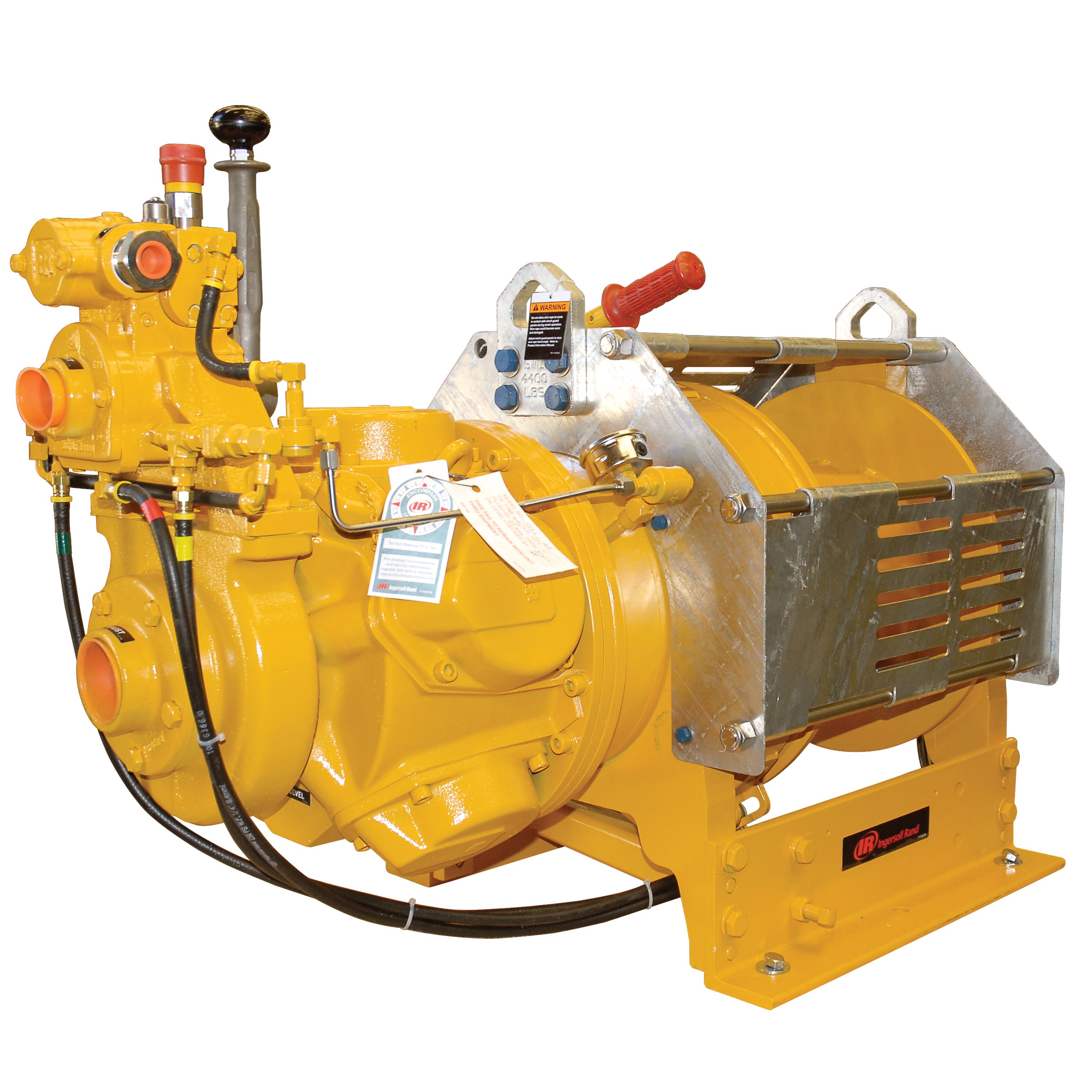

FA5i14502000kg Dual Purpose Winch btif
FA2i Infinity Series Dual Purpose Air Winch
FA2i Infinity Series Dual Purpose Air Winch 1450 2000 kg Capacity
FA2i14502000kg Dual Purpose Winch l
FA2i14502000kg Dual Purpose Winch rf
FA5i14502000kg Dual Purpose Winch btif
Back to the product list

Infinity® Dual Purpose (Personnel & Utility) Air Winches

Ingersoll Rand Dual Purpose winches are designed to maximize the use of your equipment. They combine the time-tested, rugged durability of our standard Infinity winches with enhanced safety features for lifting personnel. In environments where dedicated Man Rider® winches are not required, Ingersoll Rand Dual Purpose winches offer you the versatility to lift people and material with one winch. They are ideally suited for lifting multiple people or personnel platforms.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features



Durability

  • Rugged all steel construction and fabricated steel frames for longer life
  • Powerful radial piston air motor provides reliable power and adjustable speed
  • Self-cleaning KSC2 control valve improves flow and performance

Safety

  • Adjustable drum guard provides protection for winch operators
  • Lift-to-Shift variable speed lever provides precise control and built-in safety
  • ATEX Zone 1 and Zone 2 compliance standard

Performance

  • Built-in lifting lugs designed for lifting the weight of the winch plus wire rope
  • Minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
  • Integrated gearbox-in-drum design for use in compact applications

Model Specifications

Model
Rated Capacity at Top Layer kg (lb)
Lifting Speed at Top Layer m/min (fpm)
Air Consumption with Rated Load m3/min (ft3)
Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)
Sound Level as per EN 14492-1 dB(A)
Drum Capacity(1) Length m (ft)
Drum Capacity(1) Rope Diameter mm (in)
Net Weight kg (lb)
PERSONNEL LIFTING
FA2i-MR24MK1G
1,445 (3,180)
23 (75)
8 (280)
1.0 (37.3)
87
430 (1,435)
13 (1/2)
420 (925)
FA2.5i-MR24MK1G
1,445 (3,180)
53 (173)
20 (700)
1.1 (40.5)
97
430 (1,435)
13 (1/2)
574 (1,265)
FA5i-MR24MK1G
3,123 (6,870)
23 (75)
20 (700)
2.6 (93.3)
97
410 (1,346)
20 (3/4)
907 (2,000)
UTILITY LIFTING
FA2i-MR24MK1G
2,000 (4,400)
16 (51)
8 (280)
1.5 (54.9)
87
430 (1,435)
13 (1/2)
420 (925)
FA2.5i-MR24MK1G
2,273 (5,000)
40 (132)
20 (700)
1.5 (53.0)
97
430 (1,435)
13 (1/2)
574 (1,265)
FA5i-MR24MK1G
5,000 (11,000)
16 (54)
20 (700)
3.8 (129.6)
97
410 (1,346)
20 (3/4)
907 (2,000)

Personnel Lifting Ratings at 8:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

Utility Lifting Ratings at 5:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

(1) Wire rope is tightly wound with no freeboard.
