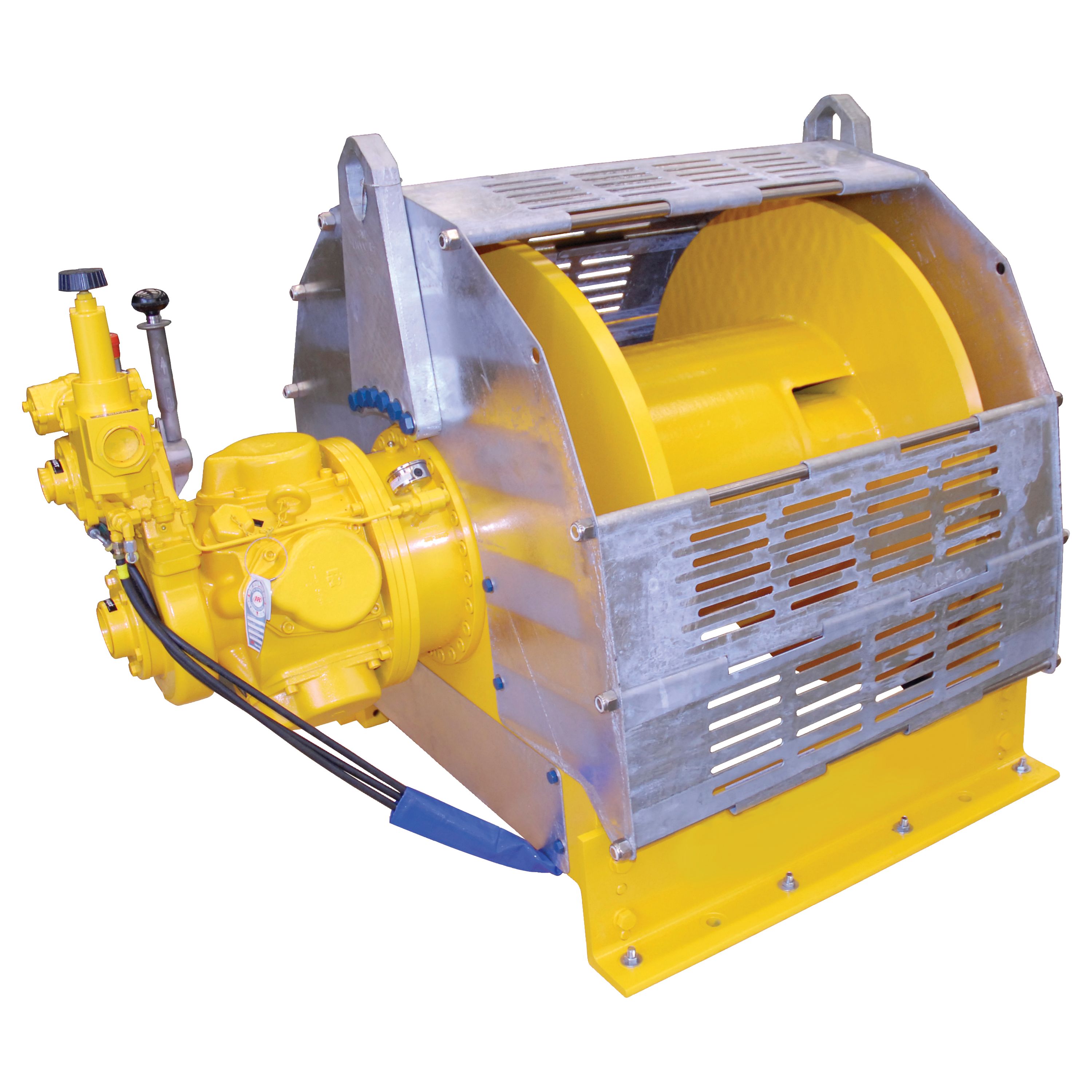

winches FA10i210 ton infinity Winch hero

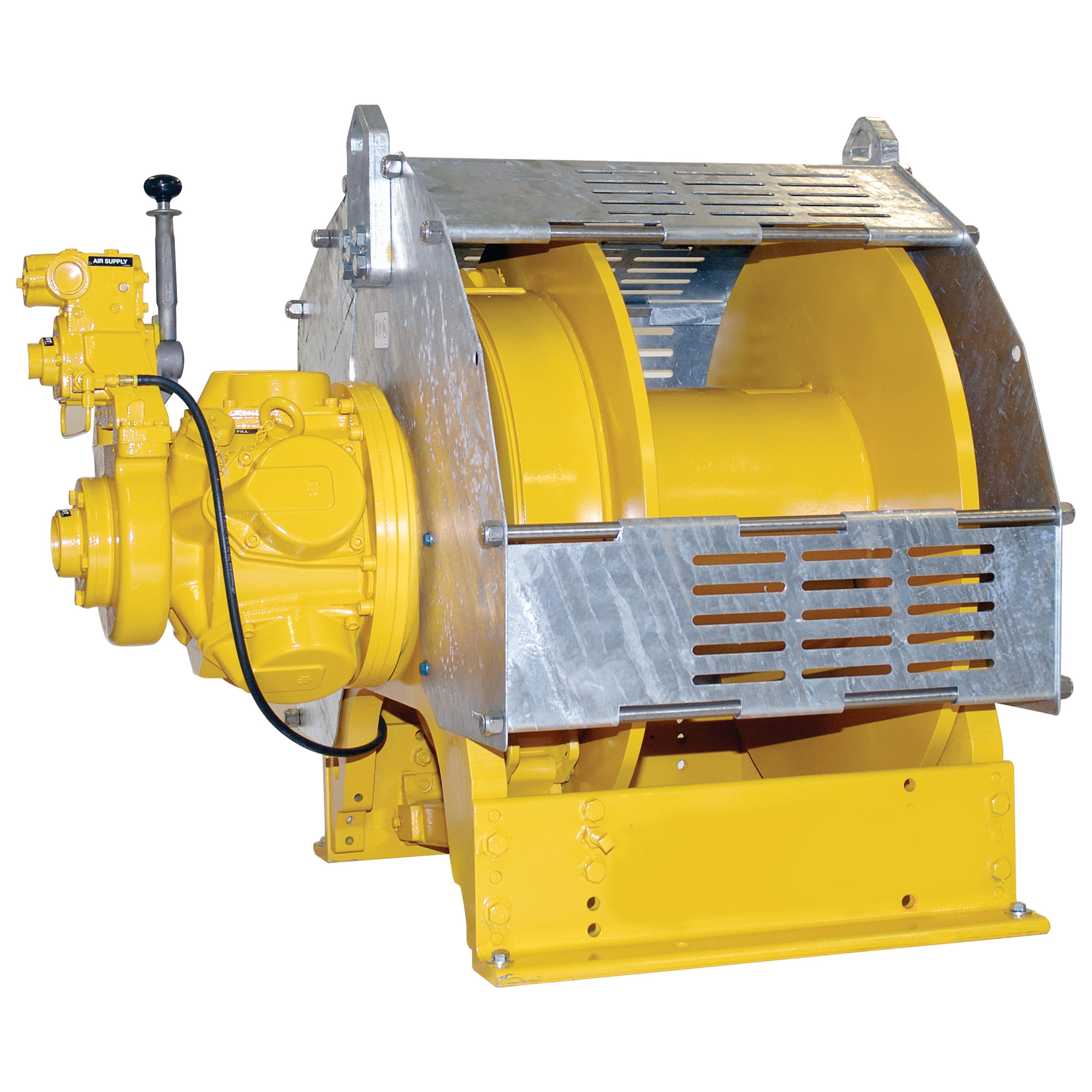

FA2.5i Infinity Series Air Winch

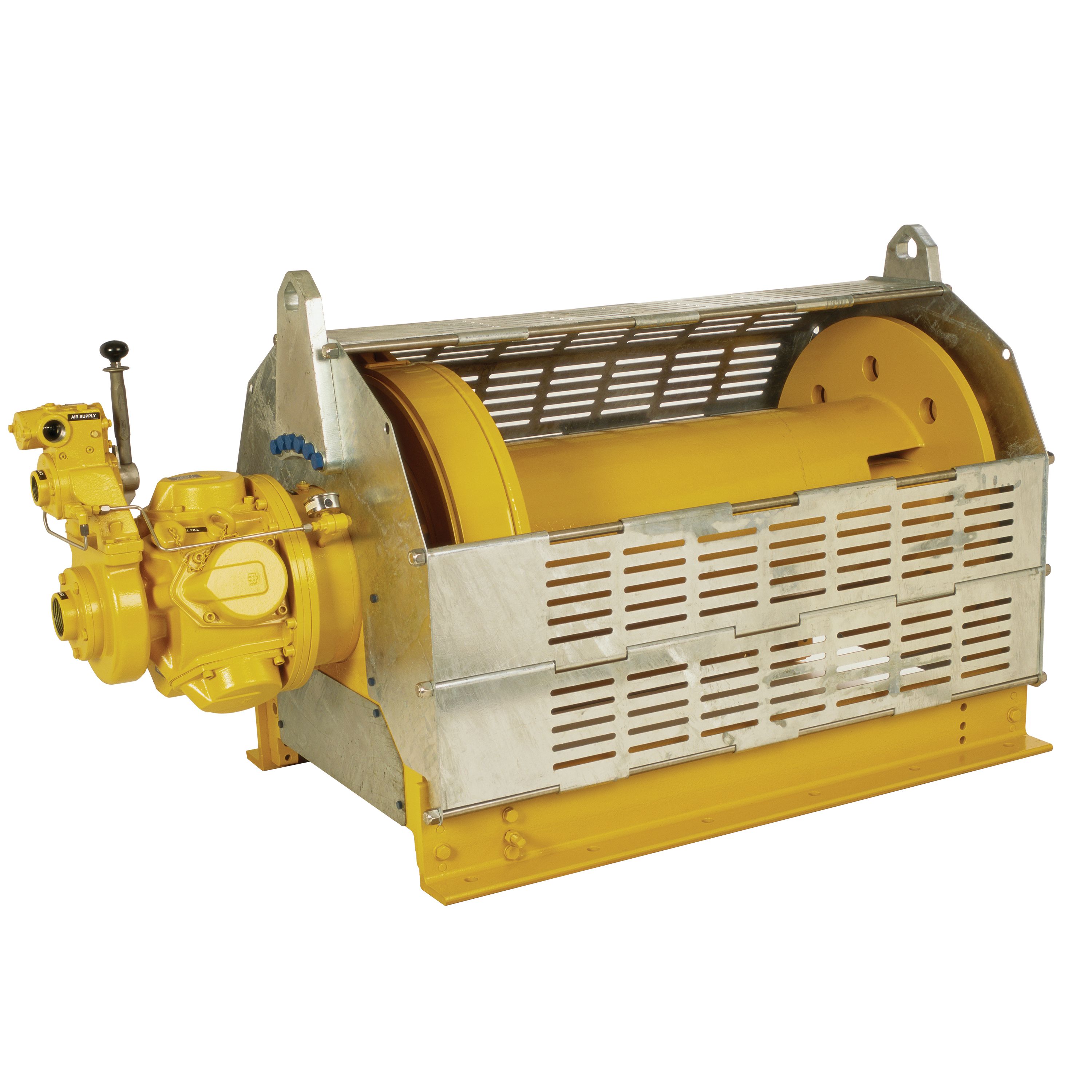

FA2i210 ton Infinity Winch rf

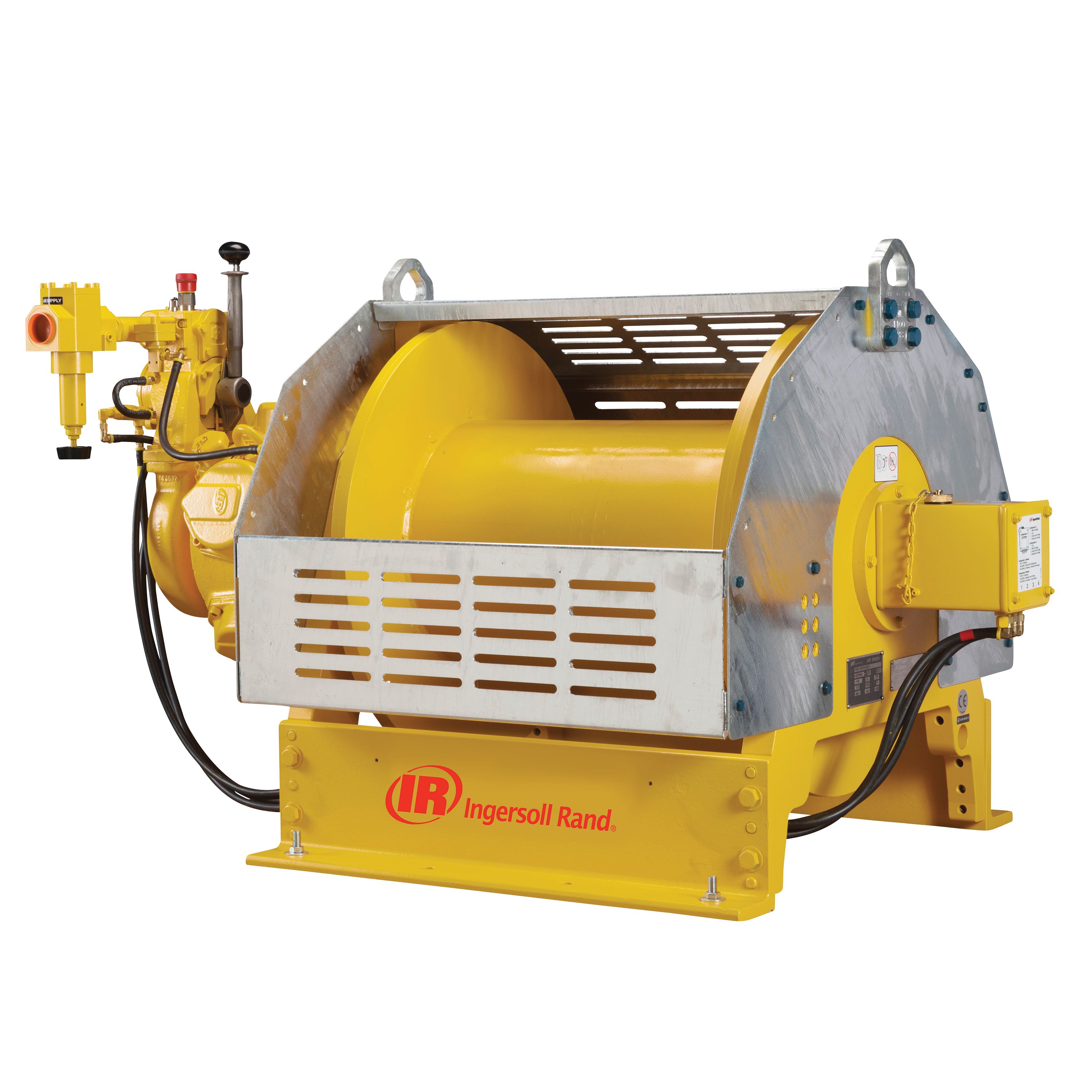

FA5i210 ton Infinity Winch r
FA5Ti210 ton Infinity Winch
FA7i210 ton Infinity Winch
winches FA10i210 ton infinity Winch hero
FA2.5i Infinity Series Air Winch
FA2i210 ton Infinity Winch rf
FA5i210 ton Infinity Winch r
FA5Ti210 ton Infinity Winch
FA7i210 ton Infinity Winch
Back to the product list

Infinity® Air Winches

Ingersoll Rand Infinity Winches are the premium air winches of the Ingersoll Rand winch line. They utilize a powerful radial piston air motor that delivers high torque and precise control. Designed with premium features and built using rugged cast iron and steel, Ingersoll Rand doesn’t take shortcuts and never uses inferior components. Infinity winches are available in a wide variety of sizes and configurations. And, with cold weather options and type approvals, these winches are ideal for harsh environment applications.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Lifting Ratings at 5:1 design factor and performance at 6.3 bar (90) psi at air inlet when winch is operating.

(1) Top layer speed is based on rated capacity.

Features



Durability

  • Rugged all steel construction and fabricated steel frames for longer life
  • Powerful radial piston air motor provides reliable power and adjustable speed
  • Self-cleaning KSC2 control valve improves flow and performance

Safety

  • 5:1 design factor for safe working load
  • Lift-to-Shift variable speed lever provides precise control and built-in safety
  • ATEX Zone 1 and Zone 2 compliance standard

Performance

  • Minimum 18:1 drum diameter to wire rope diameter reduces wire rope wear
  • Integrated gearbox-in-drum design for use in compact applications
  • Built-in lifting lugs designed for lifting the weight of the winch plus wire rope
  • Guideline/Podline deep water models are designed for offshore applications

Model Specifications





Model
FA2i-12**1
FA2i-16**1
FA2i-20**1
FA2i-24**1
FA2.5i-8
FA2.5i-12
FA2.5i-16
FA2.5i-20
FA2.5i-24
FA5i-16**1
FA5i-20**1
FA5i-24**1
FA5i-30**1
FA5i-36**1
FA5Ti-16**1
FA5Ti-20**1
FA5Ti-24**1
FA5Ti-30**1
FA5Ti-36**1
FA7i-20**1
FA7i-24**1
FA7i-30**1
FA7i-36**1
FA7i-42**1
FA7Ti-20**1
FA7Ti-24**1
FA7Ti-30**1
FA7Ti-36**1
FA7Ti-42**1
FA10i-24**1
FA10i-30**1
FA10i-36**1
FA10i-40**1
FA7Ti-GL42XK1
FA7Ti-PL42XK1
Line Pull Capacity First Layer kg (lb)
2,980 (6,600)
2,980 (6,600)
2,980 (6,600)
2,980 (6,600)
3,440 (7,600)
3,440 (7,600)
3,440 (7,600)
3,440 (7,600)
3,440 (7,600)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
16,010 (35,300)
16,010 (35,300)
16,010 (35,300)
16,010 (35,300)
3,620 (8,000)
10,970 (24,200)
Line Pull Capacity Mid Drum kg (lb)
2,490 (5,500)
2,490 (5,500)
2,490 (5,500)
2,490 (5,500)
2,855 (6,300)
2,855 (6,300)
2,855 (6,300)
2,855 (6,300)
2,855 (6,300)
6,310 (13,900)
6,310 (13,900)
6,310 (13,900)
6,310 (13,900)
6,310 (13,900)
5,710 (12,600)
5,710 (12,600)
5,710 (12,600)
5,710 (12,600)
5,710 (12,600)
9,050 (19,950)
9,050 (19,950)
9,050 (19,950)
9,050 (19,950)
9,050 (19,950)
8,410 (18,550)
8,410 (18,550)
8,410 (18,550)
8,410 (18,550)
8,410 (18,550)
13,005 (28,650)
13,005 (28,650)
13,005 (28,650)
13,005 (28,650)
2,580 (5,700)
7,800 (17,200)
Line Pull Capacity Top Layer kg (lb)
2,000 (4,400)
2,000 (4,400)
2,000 (4,400)
2,000 (4,400)
2,270 (5,000)
2,270 (5,000)
2,270 (5,000)
2,270 (5,000)
2,270 (5,000)
5,000 (11,000)
5,000 (11,000)
5,000 (11,000)
5,000 (11,000)
5,000 (11,000)
3,810 (8,400)
3,810 (8,400)
3,810 (8,400)
3,810 (8,400)
3,810 (8,400)
7,000 (15,400)
7,000 (15,400)
7,000 (15,400)
7,000 (15,400)
7,000 (15,400)
5,720 (12,600)
5,720 (12,600)
5,720 (12,600)
5,720 (12,600)
5,720 (12,600)
10,000 (22,000)
10,000 (22,000)
10,000 (22,000)
10,000 (22,000)
1,540 (3,400)
4,630 (10,200)
Lifting Speed at Top Layer(1) m/min (fpm)
16 (51)
16 (51)
16 (51)
16 (51)
40 (132)
40 (132)
40 (132)
40 (132)
40 (132)
16 (54)
16 (54)
16 (54)
16 (54)
16 (54)
21 (70)
21 (70)
21 (70)
21 (70)
21 (70)
12 (40)
12 (40)
12 (40)
12 (40)
12 (40)
15 (48)
15 (48)
15 (48)
15 (48)
15 (48)
7 (23)
7 (23)
7 (23)
7 (23)
48 (159)
18 (60)
Air Consumption with Rated Load m3/min (ft3/min)
8 (280)
8 (280)
8 (280)
8 (280)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
23 (800)
23 (800)
23 (800)
23 (800)
21 (750)
21 (750)
Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)
1.5 (54.9)
1.5 (54.9)
1.5 (54.9)
1.5 (54.9)
1.5 (53)
1.5 (53)
1.5 (53)
1.5 (53)
1.5 (53)
3.8 (129.6)
3.8 (129.6)
3.8 (129.6)
3.8 (129.6)
3.8 (129.6)
2.9 (100.0)
2.9 (100.0)
2.9 (100.0)
2.9 (100.0)
2.9 (100.0)
5.3 (187.5)
5.3 (187.5)
5.3 (187.5)
5.3 (187.5)
5.3 (187.5)
4.2 (156.3)
4.2 (156.3)
4.2 (156.3)
4.2 (156.3)
4.2 (156.3)
9.9 (347.8)
9.9 (347.8)
9.9 (347.8)
9.9 (347.8)
1.3 (47.2)
3.5 (125.0)
Sound Level as per EN 14492-1 dB(A)
87
87
87
87
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
101
101
101
101
97
97
Drum Capacity Rope Length m (ft)
210 (702)
283 (946)
356 (1,190)
429 (1,434)
80 (265)
124 (410)
167 (554)
211(698)
255 (842)
259 (883)
327 (1,114)
395 (1,346)
497 (1,693)
600 (2,041)
496 (1,863)
626 (2,352)
757 (2,841)
952 (3,575)
1,148 (4,308)
319 (1,038)
385 (1,256)
485 (1,581)
585 (1,907)
685 (2,233)
548 (1,786)
662 (2,160)
834 (2,720)
1,006 (3,281)
1,178 (3,841)
376 (1,218)
475 (1,537)
574 (1,857)
640 (2,070)
2,042 (7,480)
4,825 (16,925)
Drum Capacity Rope Diameter mm (in)
13 (1/2)
13 (1/2)
13 (1/2)
13 (1/2)
16 (5/8)
16 (5/8)
16 (5/8)
16 (5/8)
16 (5/8)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
28 (1-1/8)
28 (1-1/8)
28 (1-1/8)
28 (1-1/8)
20 (3/4)
13 (1/2)
Net Weight kg (lb)
386 (850)
386 (850)
386 (850)
386 (850)
481 (1,061)
481 (1,061)
481 (1,061)
481 (1,061)
481 (1,061)
849 (1,872)
849 (1,872)
849 (1,872)
849 (1,872)
849 (1,872)
977 (2,153)
977 (2,153)
977 (2,153)
977 (2,153)
977 (2,153)
1,000 (2,205)
1,000 (2,205)
1,000 (2,205)
1,000 (2,205)
1,000 (2,205)
1,059 (2,335)
1,059 (2,335)
1,059 (2,335)
1,059 (2,335)
1,059 (2,335)
1,451 (3,200)
1,451 (3,200)
1,451 (3,200)
1,451 (3,200)
1,352 (2,981)
1,293 (2,850)

Documents

7 ton - Infinity Air Winches FA7TiXK1CE with Auto Disc Brake CE

Infinity Brochure

2 ton - Infinity Air Winches FA2iXK1 with Auto Disc Brake CE

5 ton - Infinity Air Winches FA5TiXK1 Tall Flange with Auto Disc Brake

2 ton - Infinity Air Winches FA2iXK1CE with Auto Disc Brake CE

5 ton - Infinity Air Winches FA25iXK1 with Auto Disc Brake

5 ton - Infinity Air Winches FA25i12MK1 with Manual Band Auto Disc Brake

5 ton - Infinity Air Winches FA5iXK1 with Auto Disc Brake

2 ton - Infinity Air Winches FA2iMK1 with Manual Band Auto Disc Brake

10 ton - Product Parts Information - Force5i Winch Series

5 ton - Infinity Air Winches FA5iMK1 with Manual Band Auto Disc Brake

Infinity FA10i Flyer

5 ton - Infinity Air Winches FA5iXK1CE with Auto Disc Brake CE

5 ton - Infinity Air Winches FA25iMK1 with Manual Band Auto Disc Brake

10 ton - Product Information - Force 5i Air Winch

5 ton - Infinity Air Winches FA25i8XK1 with Auto Disc Brake
